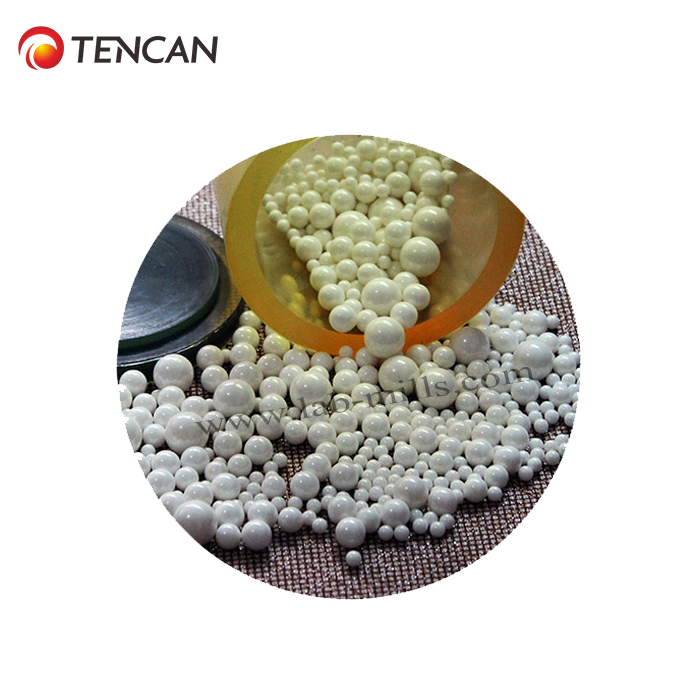

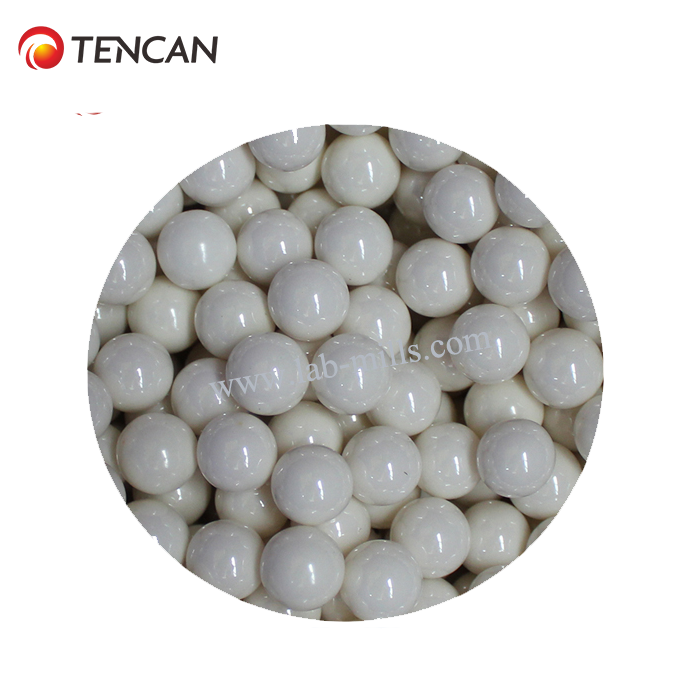

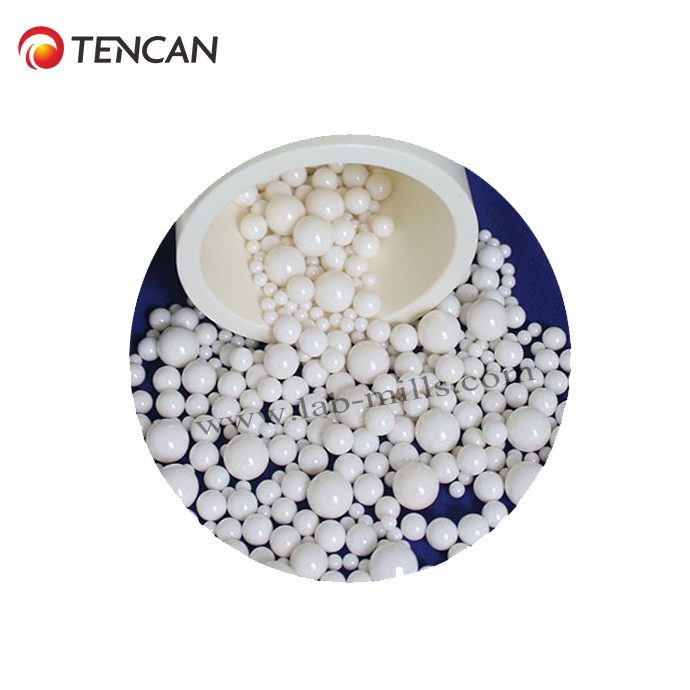

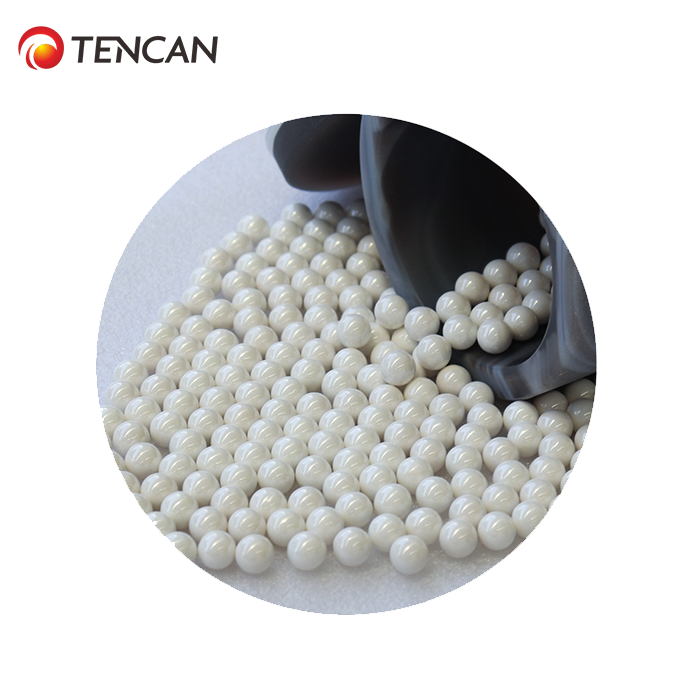

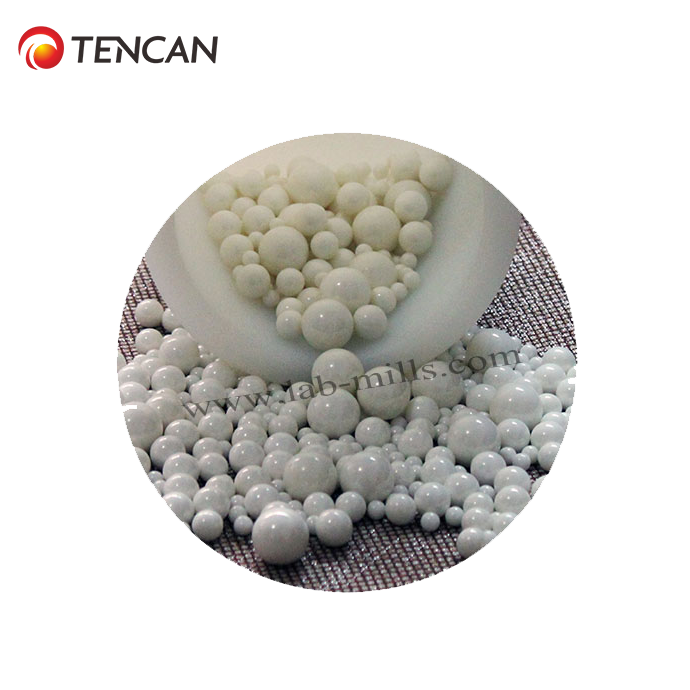

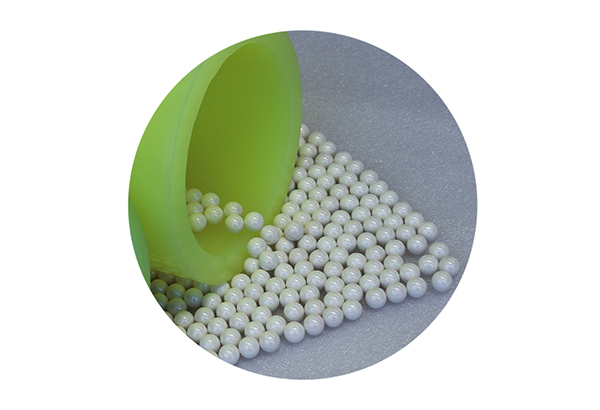

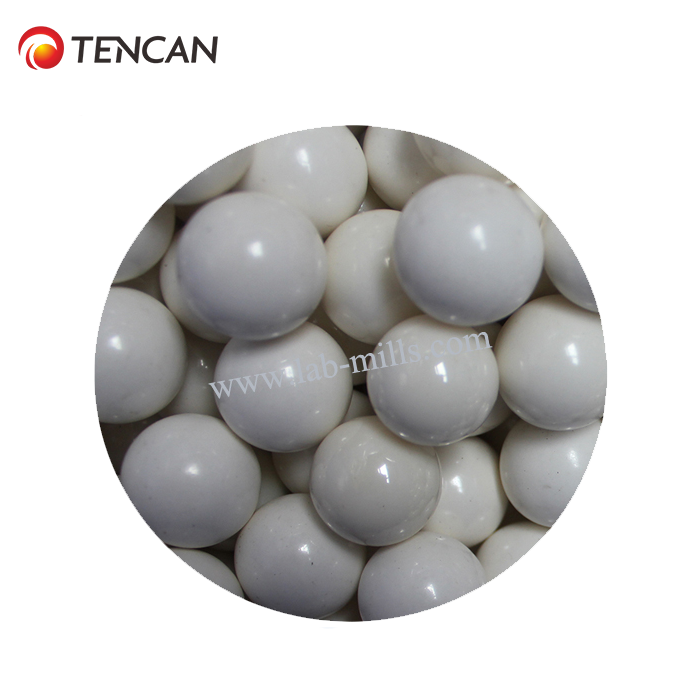

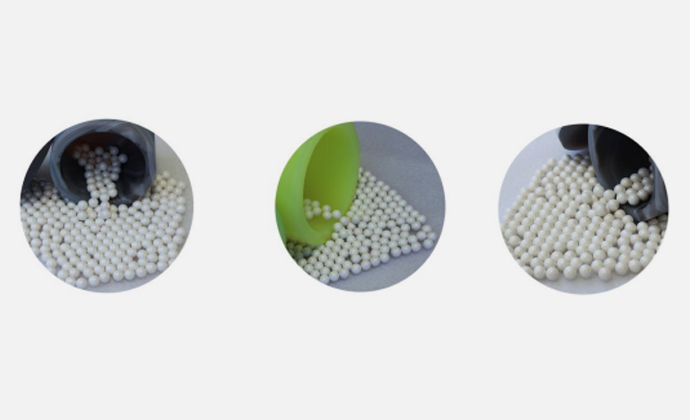

Are also called zirconia grinding balls, zirconium oxide ceramic balls, zirconium beads, ultra-fine grinding media and zirconia mini beads. Zirconia mill ball has smooth and gloss surface like pearl, which is the most excellent among all grinding media.
| Parameters Of Zirconium Oxide Mill Balls | ||
| Items | Unit | Parameter |
| Composition | wt% | 94.8% ZrO25.2%Y2O3 |
| Packed Density | Kg/L | 3.5(diameter 7mm) |
| Specific Density | g/cm3 | ≥6.02 |
| Hardness(HV) | Kg/mm2 | ≥1250 |
| Thermal Conductivity | w/m.k | 3 |
| Crushing Load | KN | ≥20(diameter 7mm) |
| Fracture Toughness | Mpa.m1/2 | ≥9 |
| Grain size | µm | ≤0.5 |
| Thermal Expansion Co-efficient | 9.6 | |
Zirconia mill ball owns advantages of high hardness, high toughness and high density, good abrasion resistance, heat-resistance, corrosion-resistance, high stiffness, non-magnetic and electrical isolation. Its thermal expansion ratio is next to steel. Its hardness and strength can be hardly changed even under condition of 600℃.
1. High grinding efficiency: It has higher grinding efficiency under some conditions.
2. Good fluidity: Smooth and gloss surface, lower abrasion compared with other media.
3. Impact resistance and low abrasion: TZP zirconia ceramic mini ball has good toughness, and it won’t be cracked and peeled under high speed rotation and high concentration environment and its abrasion ratio is only half of zirconium silicate beads.
4. Low using cost: Zirconia ball saves your costs greatly, such as reducing media and equipment abrasion, saving electricity and labor cost and so on.
Zirconia mill balls are often used for grinding materials into ultra-fine powder by wet and dry methods, which are commonly applied to the following fields:
A. High strength and toughness products: magnetic material, piezoelectric ceramics, dielectric ceramics
B. Prevent pollution: medicine, food, cosmetic and dyeing industries.
C. Abrasion and corrosion resistant products: painting and coating, printing ink, paper making, solar cell, and nonmetal industries.
D. Ceramics: electronics ceramics, refractory ceramics, structural ceramics.
