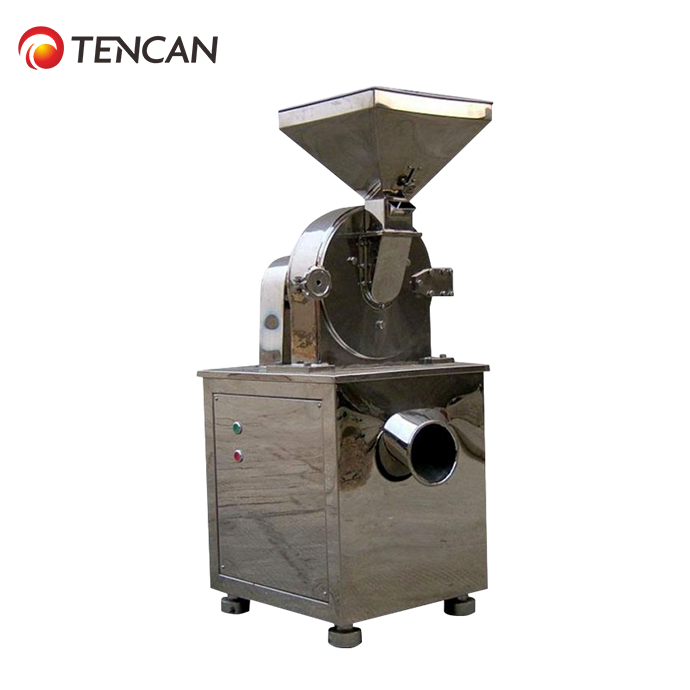

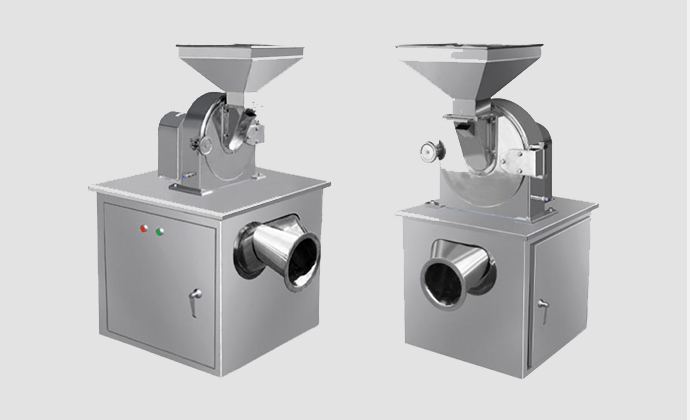

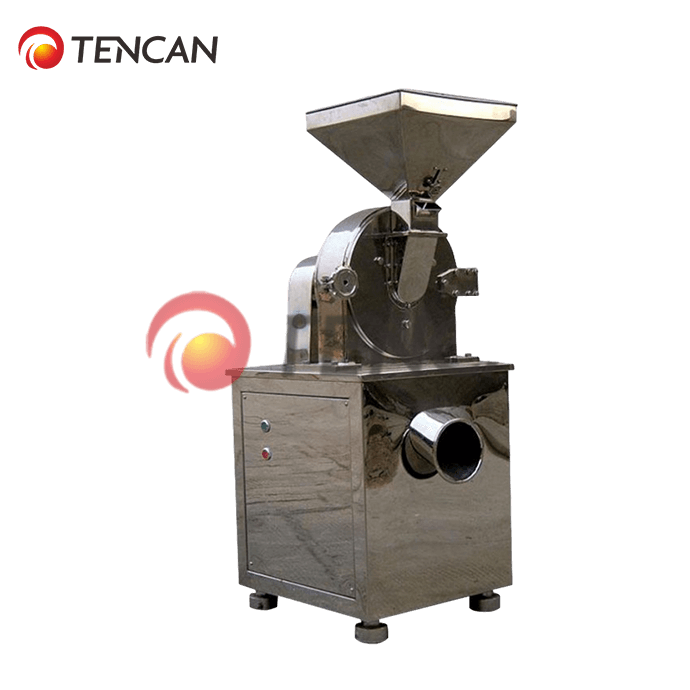

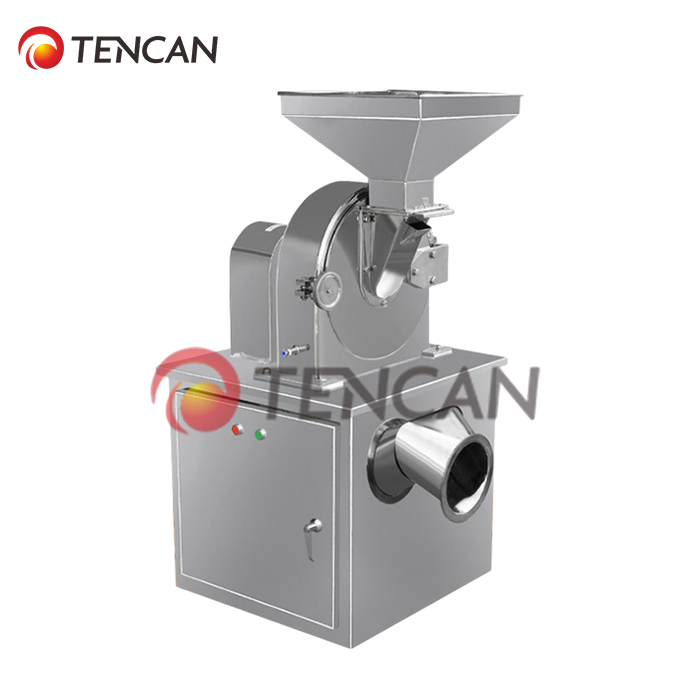

Is also known as stainless steel pulverizer, high-efficiency pulverizer, food pulverizer, hammer pulverizer, multi-function pulverizer, chemical pulverizer, and preparation pulverizer. The universal pulverizer has simple structure, firmness, stable operation, easy cleaning and good pulverizing effect. The pulverized material can be directly discharged from the grinding chamber of the machine. The particle size can be obtained by replacing mesh screens in different sizes. The universal pulverizer is fully made of stainless steel. . The inner wall of the grinding chamber of the machine is processed to achieve smooth surface, which changes the phenomenon of rough inner wall and powder accumulation of the previous model, and makes production of medicine, food, and chemical industry more in line with national standards and GMP requirements. Universal pulverizer is most commonly used as practical model in pharmaceutical factories, food factories, chemical factories, hospital preparation rooms, clinics, outpatient departments, research institutes, health care products factories, building materials factories, feed factories and other units.
| Product Name | Universal Pulverizer | ||
| Model No. | MF-20 | MF-30 | MF-40 |
| Power Supply | 380V-50Hz 1 Phase | 380V-50Hz 1 Phase | 380V-50Hz 1 Phase |
| Power | 4.0KW | 5.5KW | 11KW |
| Capacity (kgs/h) | 60-150 | 100-300 | 160-800 |
| Feed Size (mm) | ≤6 | ≤6 | ≤6 |
| Final Fineness (mesh) | 60-120 | 60-120 | 60-120 |
| Diameter of Tooth Disc(mm) | ＜φ300 | ＜φ500 | |
| Rotation Speed (rpm) | 4500 | 3800 | 3400 |
| Net Weight (kgs) | 250 | 320 | 450 |
| Dimensions (mm) | 1100*600*1650 | 1200*650*1650 | 1350*700*1700 |

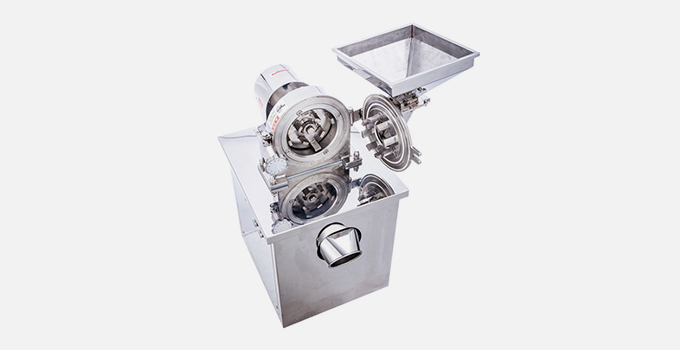

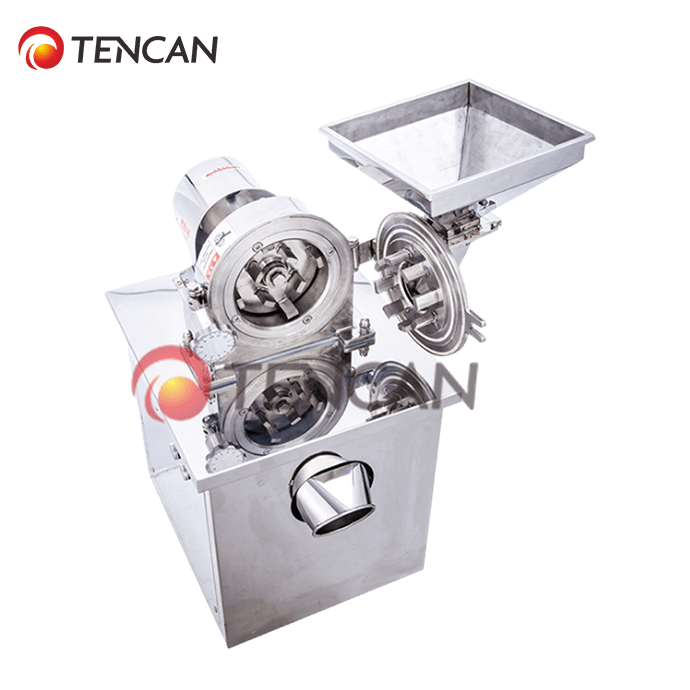

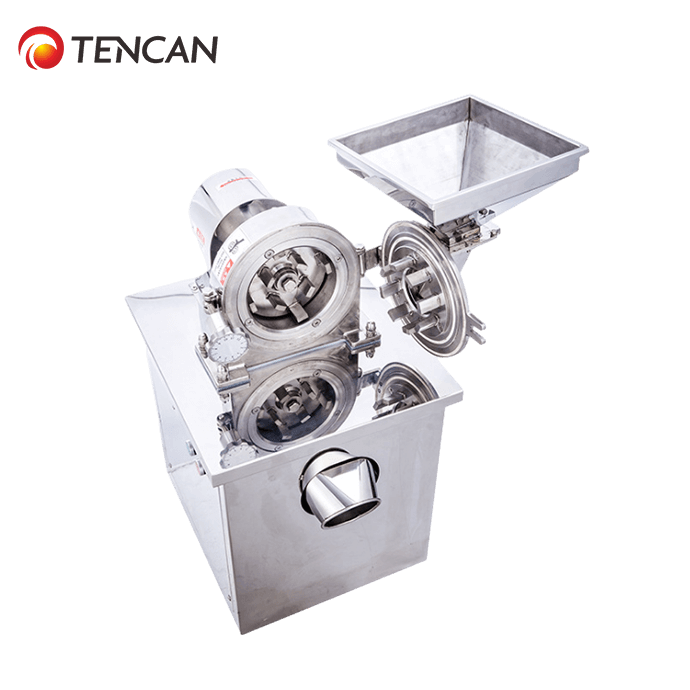

The universal pulverizer utilizes the high-speed relative movement of the movable toothed disc and the fixed toothed disc to make material crushed by action of tooth impact, friction and impact between materials. Material is fed into the crushing chamber by the feeding hopper, and is impacted by the blade and the blade seat, and materials are sheared and crushed by the rotary knife and the fixed knife at the same time. Due to action of the rotary centrifugal force, the material automatically flows out from the outlet. The machine is simple in structure, strong in operation, stable in operation and good in crushing effect. The crushed material can be directly discharged from the grinding chamber of the machine, and the particle size can be obtained by replacing mesh screens with different sizes. In addition, the machine is fully made of stainless steel and its inner wall of the machine shell is processed to be smooth surface, which solves phenomenon and issues of rough inner wall and powder accumulation. The universal pulverizer is in line with state standard and meets requirements of GMP standard for production of medicine, food, and chemical industries.
Universal pulverizer is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. It can be used to process hard materials or some materials which are difficult to crush, including plastics, copper wire, Chinese herbal medicine, rubber, etc. Thus, univeral pulverizer is often used as supporting equipment for pre-crushing process of micron fine grinder and ultra-fine grinder. The powder collecting room adopts fully enclosed silencing structure, which can effectively reduce working noise. A cooling device is installed in the machine to reduce temperature and makes machine to work more stable. The motor rotation speed of the machine is 5000 rpm. This machine is made of ICr18Ni9Ti stainless steel with strong wear resistance and corrosion resistance, it is suitable for processing high-grade or corrosive materials. This machine adopts impact crushing method, after the materials enter into the crushing chamber, they are impacted by six movable hammers with high-speed rotation, and are smashed by mutual impact between gear rings and materials. With help of the air flow, the crushed materials enter into the powder collection bag through the sieve screen without leaving residue. It has the advantages of high efficiency, low noise, reliable working performance and product quality, safe operation, medical hygiene and small loss.
