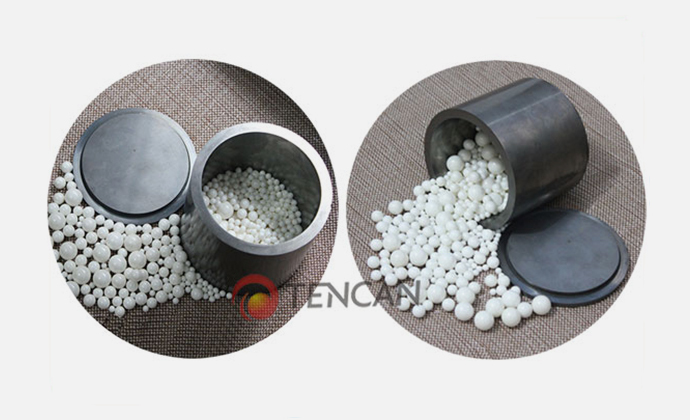

Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.
|
Parameters of Tungsten Carbide Mill Jar for Planetary Ball Mill |
||||||
| Volume of Jar | Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) | Height of Not Containing Cover (mm) |
Total Height (mm) |
Weight (KG) |
| 50ml | 38 | 48 | 45 | 50 | 54 | 0.4 |
| 100ml | 48 | 62 | 59 | 65 | 72 | 0.9 |
| 250ml | 71 | 87 | 69 | 75 | 83 | 1.7 |
| 500ml | 90 | 106 | 93 | 100 | 108 | 2.9 |
| 1L | 115 | 131 | 103 | 110 | 118 | 4.2 |
| 1.5L | 115 | 131 | 143 | 150 | 158 | 5.3 |
| 2L | 141 | 157 | 133 | 140 | 14 | 6.5 |

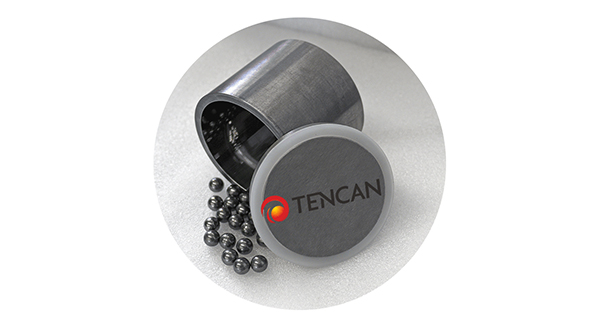

1. High temperature resistance: The Maximum temperature which it bears can be amounted to 1000 centigrade.
2. High wearing resistance even at temperature of 500 centigrade.
3. High hardness: super high hardness is the key factor of tungsten carbide mill jar.
4. Strong toughness: not only it owns high hardness, but also good toughness.
Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.
