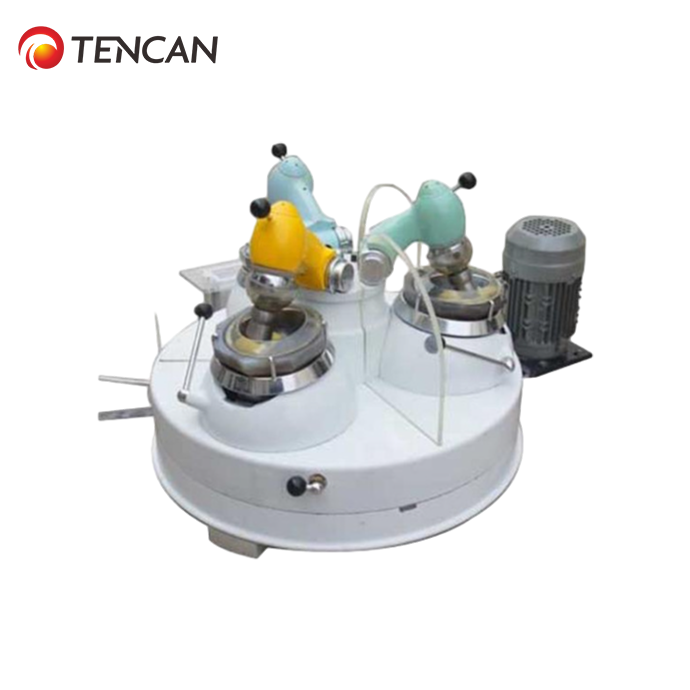

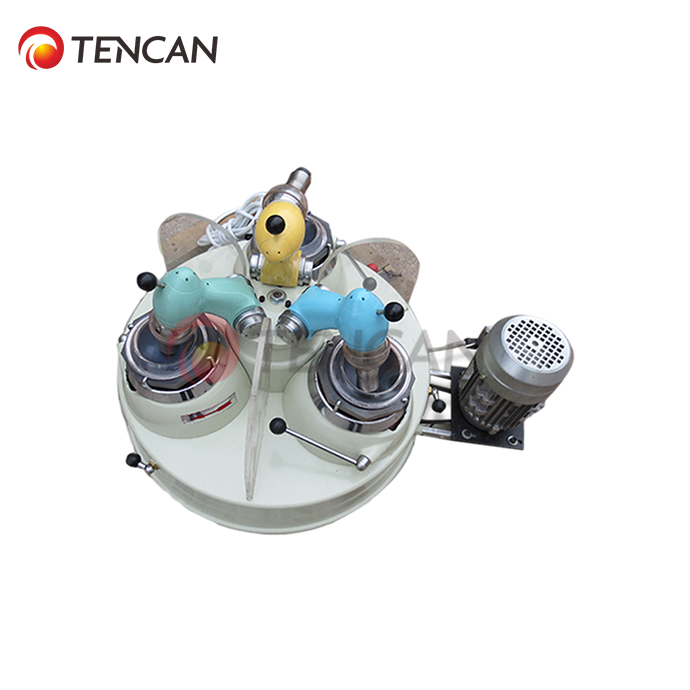

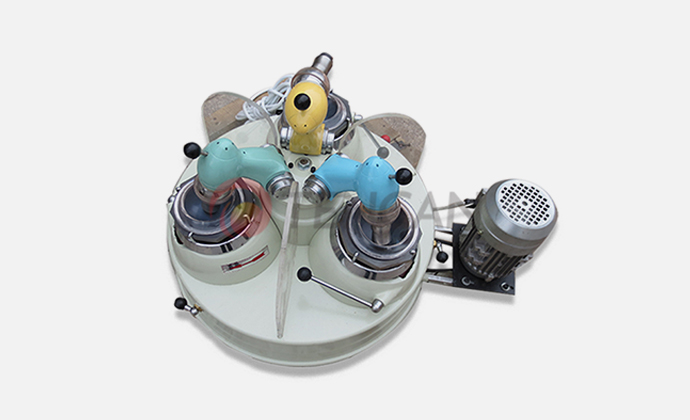

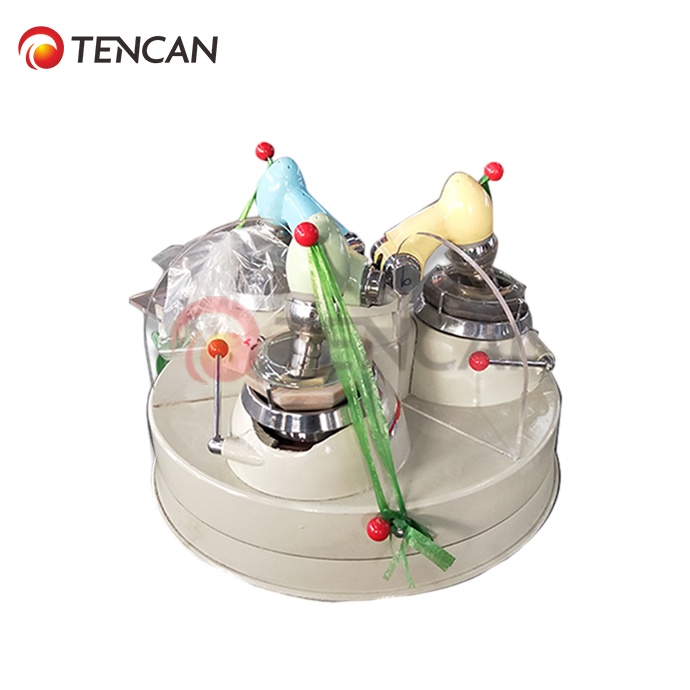

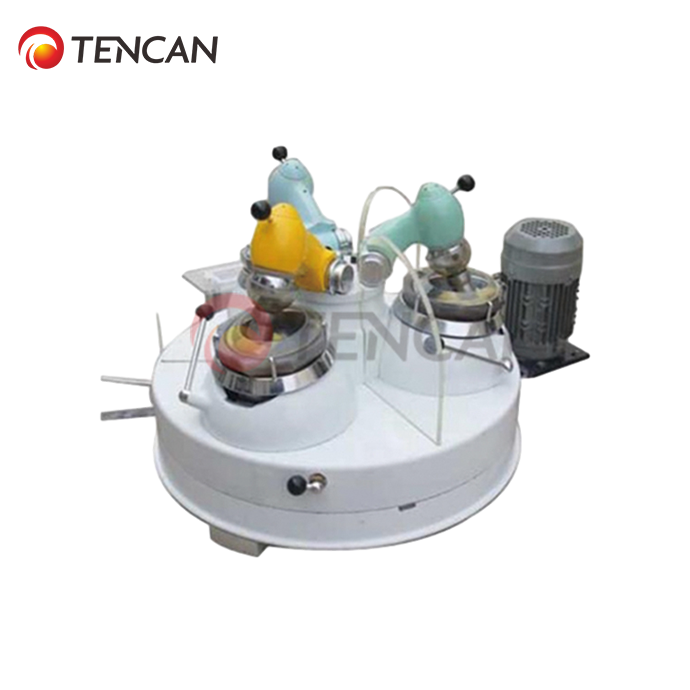

Three head agate grinder is a kind of equipment for dry grinding and analyzing samples. Which has advantages of no metal pollution to the grinding samples, uniform and ultra-fine grinding materials, simple operation, and low noise. Three head agate grinder is mainly used in laboratories of geological, coal, mining, metallurgy, chemical, building materials, hydropower as well as laboratories of colleges and universities, scientific research institutions. Three head agate mortar grinder is a standard equipment for various analysis, sorting, inspection and testing, which can also be used for quality inspection, environmental protection, testing or for the relevant parties to grind ordinary small amount of materials.
| Description of Items | Technical Parameters |
| Product Name | Three Head Agate Mortar Grinder |
| Model No. | MNY-Φ120*3 |
| Numbers of Head | 3 |
| Max Capacity | 90g |
| Power Supply | 380V-50Hz 3 Phase or 220V-60Hz 3 Phase |
| Power of Motor | 0.37KW |
| Material of Bowl & Rod | Agate |
| Mortar Diameter | Ø120mm |
| Depth of Grinding Bowl | 34mm |
| Depth of Grinding Bowl | 34mm |
| Rotation Speed of Grinding Bowl | 9 rpm |
| Rotation Speed of Grinding Rod | 220 rpm |
| Feed Size of Material | ≤1.5mm |
| Output Particle Size | 0.074mm (or 200 meshes) |
| Dimensions | 770×740×470mm |
| Net Weight | 105kgs |
