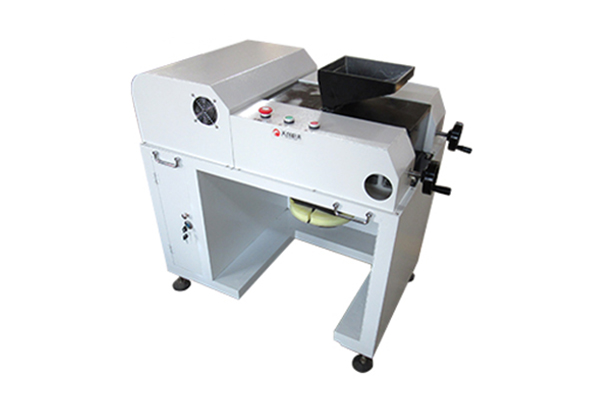

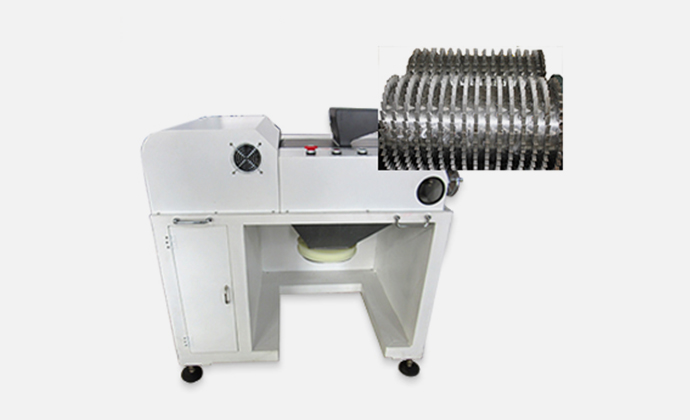

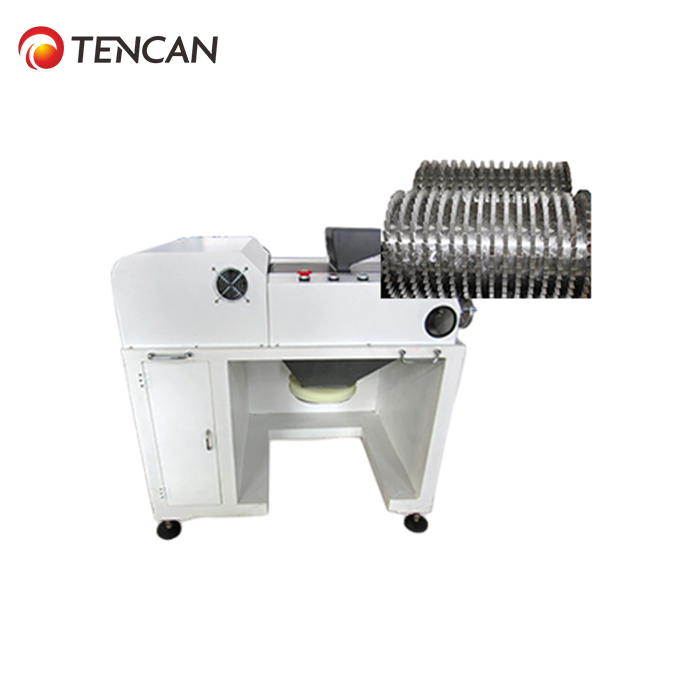

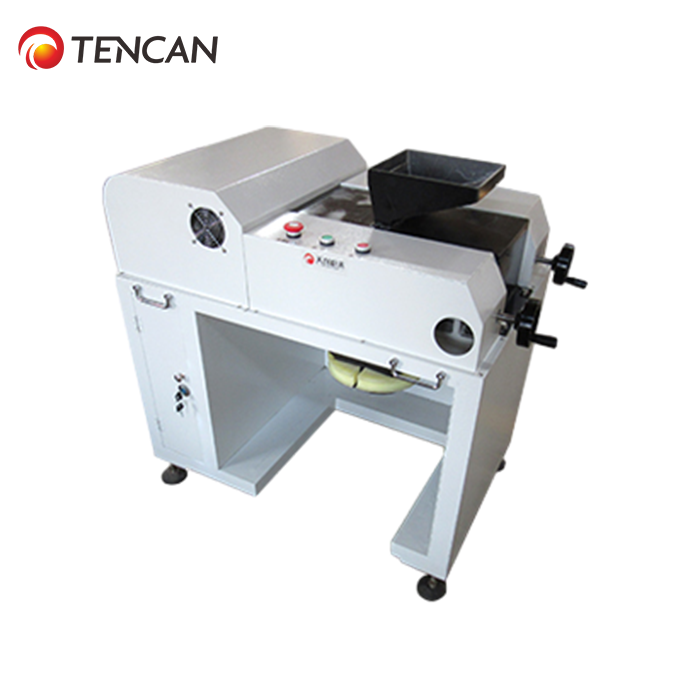

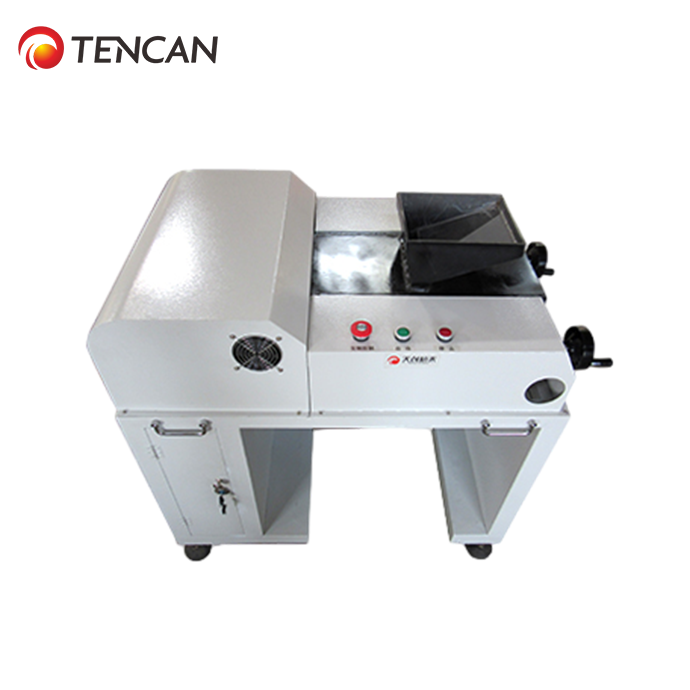

Is a new machine model designed and developed by Tencan based on the structural principle of the American Gangluck crusher. The tooth roller crusher is composed of transmission device,frame part, double crushing rollers, mechanical spring device, linkage mechanism and so on. Tooth roller crusher has two series: double-tooth roller crusher and four-tooth roller crusher. The tooth roller crusher is mainly suitable for coal, metallurgy, mining, chemical, building materials and other industries, and it is more particularly suitable for crushing raw coal (including gangue) in large-scale coal mines or coal preparation plants.
|
Technical Parameters of Tooth Roller Crusher |
||
| Roller Size | 300*300mm (SUS304) | 300*500mm (SUS304) |
| Rotation Speed | 52r/min | 52r/min |
| Feed Size | 10-50mm | 10-80mm |
| Particle Size of Output | 0.5-5mm | 0.5-5mm |
| Capacity | 70-80kgs/hour | 600kgs/hour |
| Power Supply | 380V/50Hz 3 phase | 380V/50Hz 3 phase |
| Power | 1.5KW | 3.0KW |
| Dimensions | 660*800*930mm | 880*1020*1140mm |
| New Weight | Depends | Depends |
The tooth roller crusher mainly uses special wear-resistant toothed rollers to rotate at high speed to split and crush the materials, forming a mechanism of high productivity.
1.The toothed roller crusher has a large crushing capacity.
2.Prevent power overload, overload protection, safe and reliable.
3.Space between tooth rollers can be adjusted arbitrarily, and the tooth roller bearings are centralized lubricated.
4.Optimized design of tooth shape, selection of tensile and shear force for crushing, high efficiency and low consumption, uniform output particle sizes.
The tooth roller crusher has advantages of small volume, large crushing ratio, low noise, simple structure and convenient maintenance.
