Is a necessary device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D centers, universities, enterprises laboratory to get samples (each experiment can get four samples at the same time). It is an ideal equipment for scientific research units, universities and enterprise laboratories to obtain research samples, you can obtain four samples from each batch at the same time. This kind of super mini size planetary ball mill is designed to be put into glove box and you can use this machine to grind some special materials under inert gas atmosphere ( nitrogen or argon ).
| Drive Mode | Gear drive or belt drive |
| Operation Mode | Two or four grinding jars can be used for each grinding |
| Max Load Capacity | Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume |
| Feed Size of Materials | Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm |
| Output Granule | Smallest granularity can be achieved to 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Mill Jars Available | 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Technical Parameters for Tencan Super Mini Planetary Ball Mill
| Model No. | Voltage
(V) |
Power
(W) |
Revolution Speed
(rpm) |
Rotate
Speed (rpm) |
Dimensions
(mm) |
Net Weight
(KGS) |
| XQM-0.2S | 110V or 220V | 90 | 60-580 | 120-1160 | 250*425*280 | 24 |
| XQM-0.2 | 110 or 220V | 90 | 60-580 | 120-1160 | 220*410*270 | 24 |
Remarks:
1. Available voltage: 110V/60Hz single phase or 220V/50Hz single phase.
2.XQM-0.2S has to be equipped with an electric control box.
3.XQM-0.2 has not electric control box.

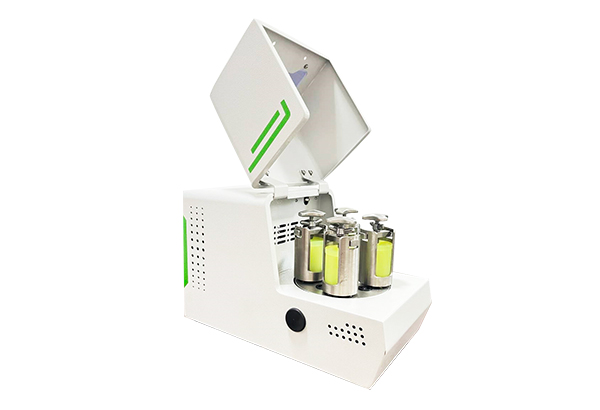

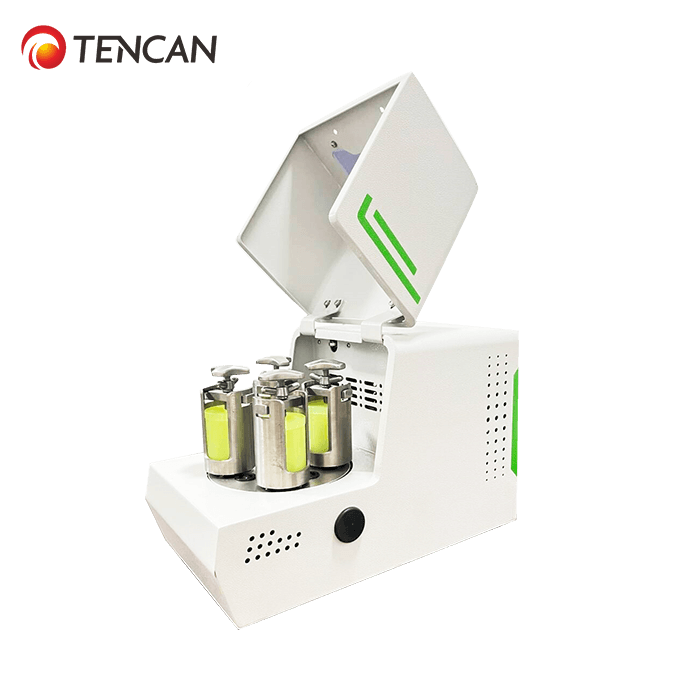

Super-mini Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be reached to the smallest size as 0.1µm.
Shell of Tencan super-mini planetary ball mill is welded with thick steel plate, which has high strength, impact resistance, deformation resistance, fine workmanship, strong and beautiful appearance. The material of mechanic parts is strictly processed by heat treatment process and numerical control processing technology. The gear box is adopted with quasi-sealed groove embedded structure, and the drivegear is made of wear-resistant precision gear. The machine frame and structure are fully considered in design to ensure the stable, safe and reliable operation of the ball mill under long-term and high load conditions, and to effectively achieve the effect of noise reduction in the operation of the machine. The liquid oil self-lubricating device is designed with low noise and high intensity, and it is equipped with a liquid oil level meter for easy replacement. With the touch screen of micro-computer, machine operation is becoming convenient, the interface is more simple and intuitive,forward and reversal alternating control can be achieved easily. It owns functions of timing and power-off memory.
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may set ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of XQM-2S: small volume, more functions,low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

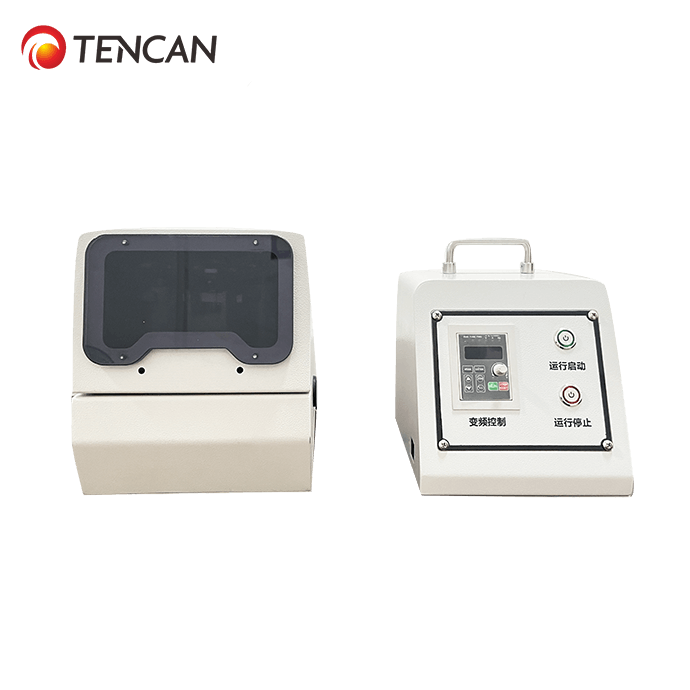

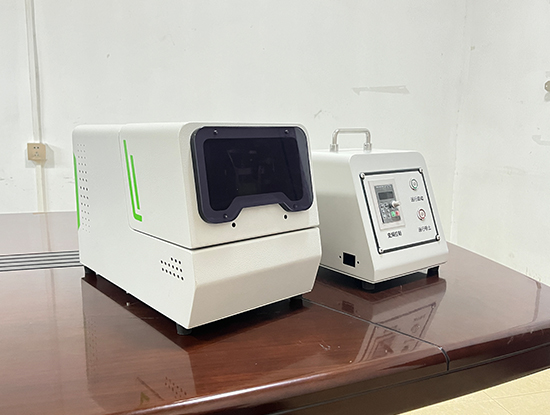

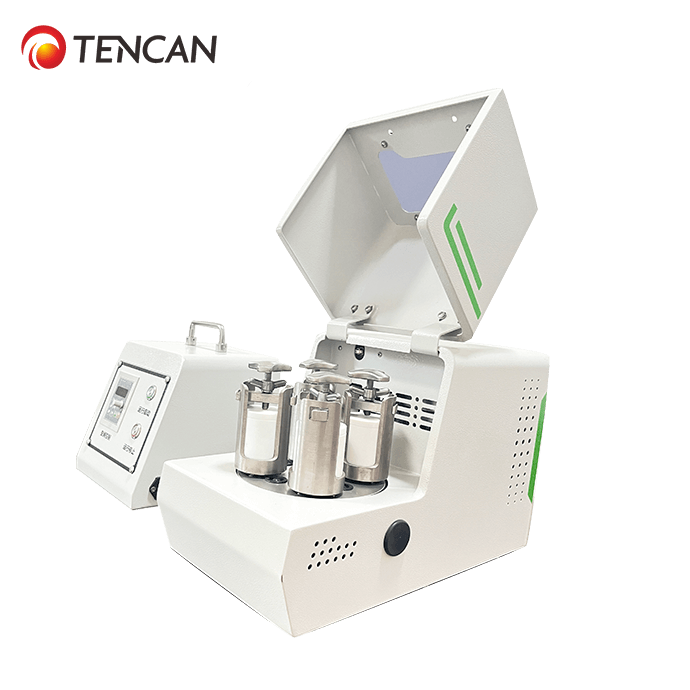

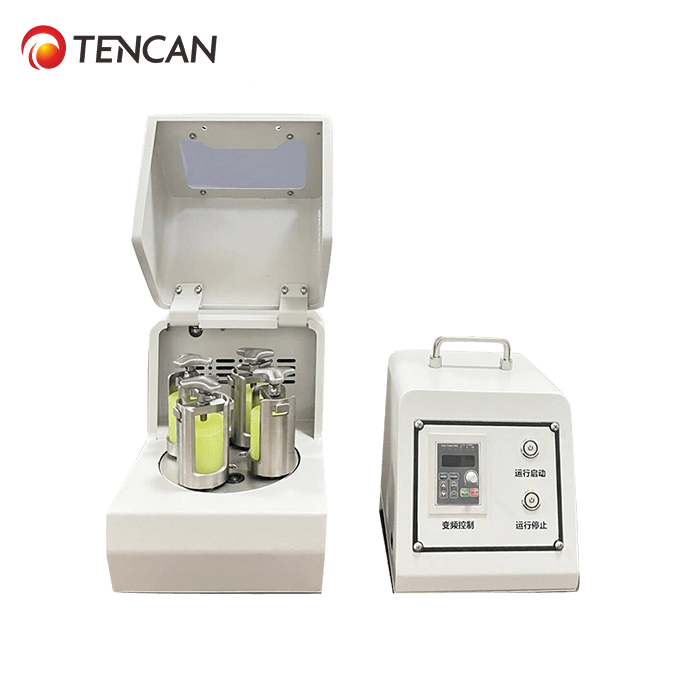

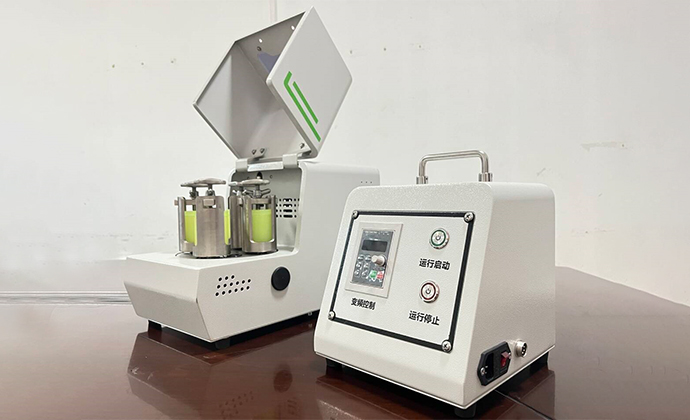

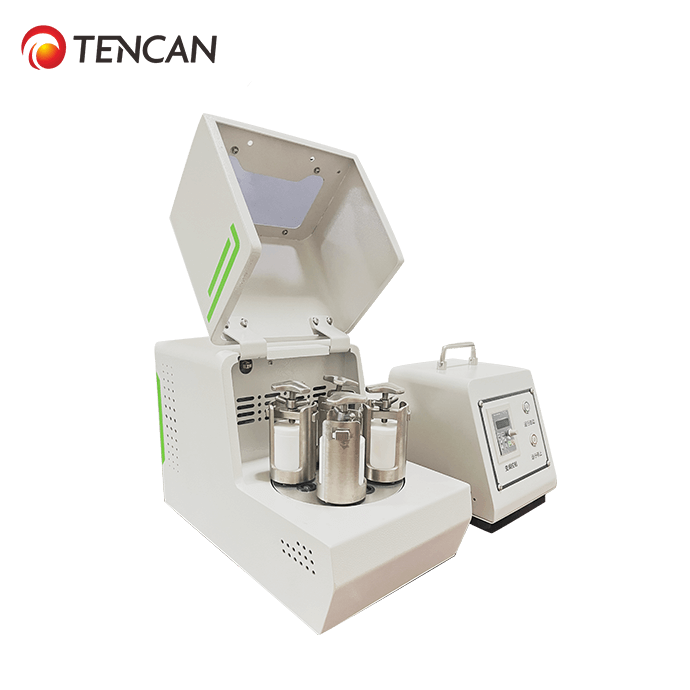

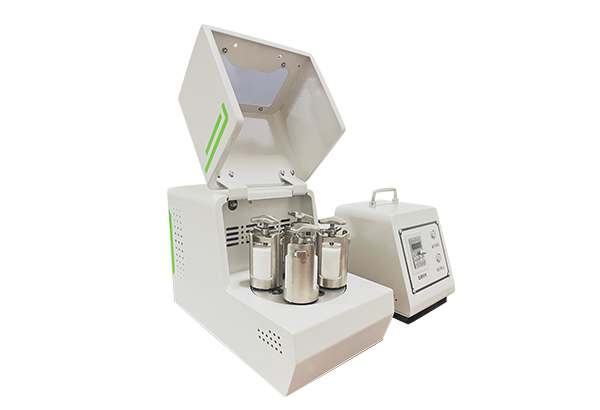

Tencan super mini size planetary ball mill is divided into two kinds, namely planetary ball mill for glove box type (model XQM-0.2S) and planetary ball mill conventional type (model XQM-0.2). XQM-0.2S (glove box special type) can be placed inside the glove box for vacuum or inert gas protection. It greatly extends the scope of use for customer’s product grinding and material research. This kind of planetary ball mill (XQM-0.2S) realizes grinding some special materials which can not be ground under normal environment .
Accessories
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
|
Recommendation For Matching Solutions About Mill Jars & Materials |
|
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
|
References About Grinding Medias & Materials |
||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
|
Matching Solutions for Mill Jars & Balls |
|||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
