(1) Voltage: 220V AC.
(2) Feed size: soil material ≤ 10MM, other materials ≤ 3MM,
discharge particle size: the smallest final particle size can be reached to 0.1 μ m。
(3) Speed (R/MIN): revolution: 35-335, rotation: 70-670.
(4) Power of single phase motor variable frequency controller: 0.75KW (with electronic monitoring device displaying power, continuous operation timing time (MIN), and forward and reverse rotating cycle (MIN).
(5) Speed regulation method: stepless speed regulation, automatic timing forward and reverse, automatic shutdown.
(6) Continuous working time (full load): 48 hours.
(7) Electric screening shaker: it can be loaded with seven layers of sieving screen in 200mm diameter. Range of sieving hole: 20-200 mesh (20 micrometers) digital display, screening vibration frequency 1400 revolutions per minute.
For heavy metal analysis of soil, China Tencan has developed a set of special grinding equipment including soil grinder and sieve shaker. Soil grinder is equipped with four agate mill jars. Pressure inside the sealed agate jars can be set by using a graduated scale, and each mill jar rotates in reverse around its own axis while the planetary disc is making revolution. The samples inside the mill jars collide and rub with each other during high-speed movement, achieving purpose of crushing, grinding, mixing, and dispersing the samples. Soil grinder can be used used for dry , wet, or vacuum grinding. Two or four mill jars can be operated simultaneously at one time.
Standard Configuration Of Soil Grinder And Sieve Shaker
1.Host of soil grinder
2.4*250ml Agate mill jars + 700 pcs of agate balls
3.Sieve shaker

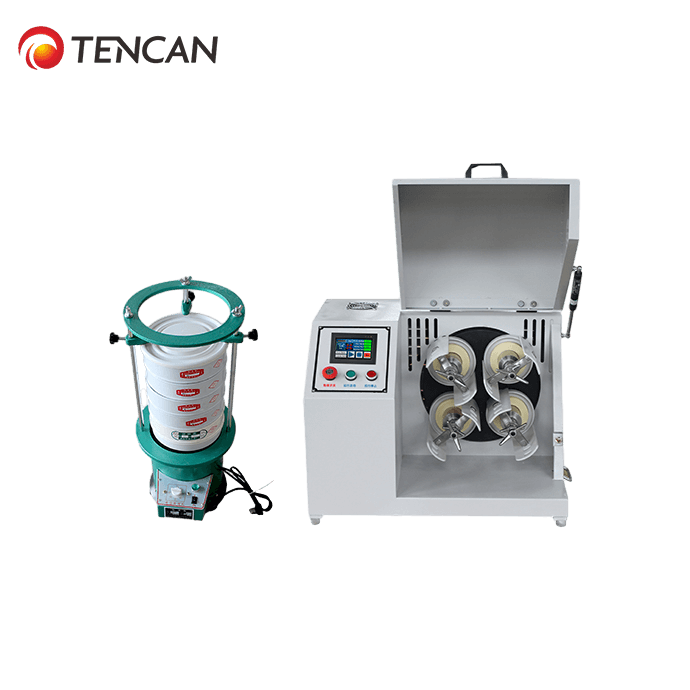

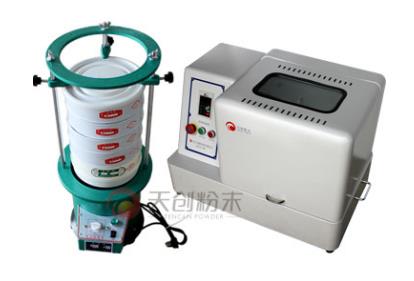

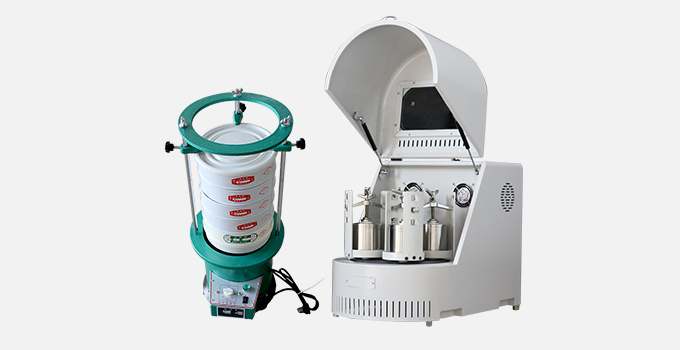

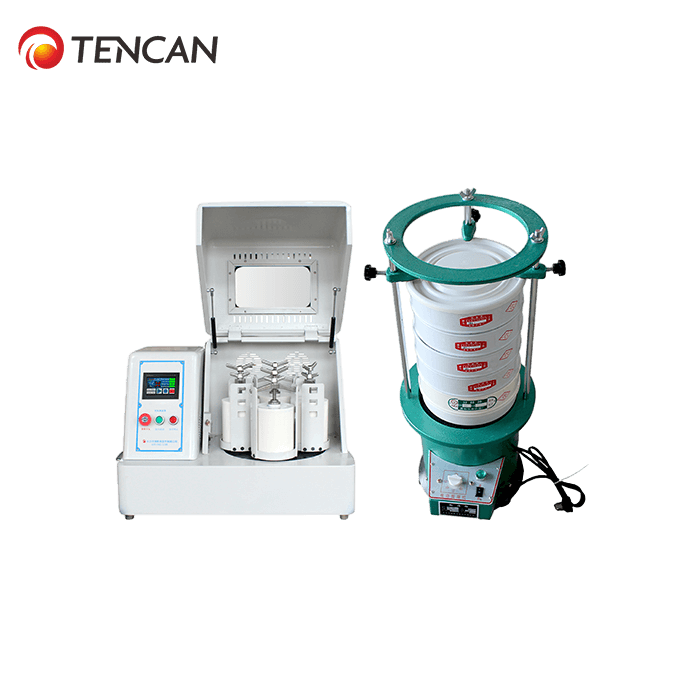

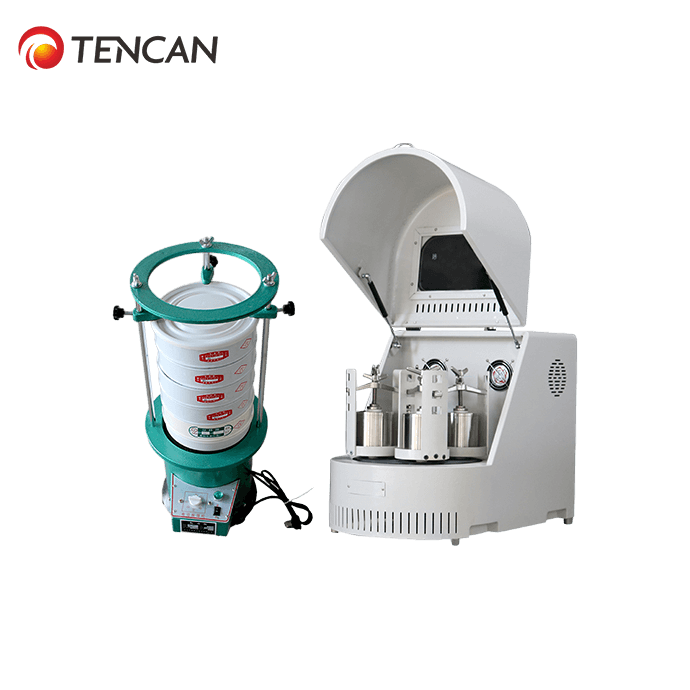

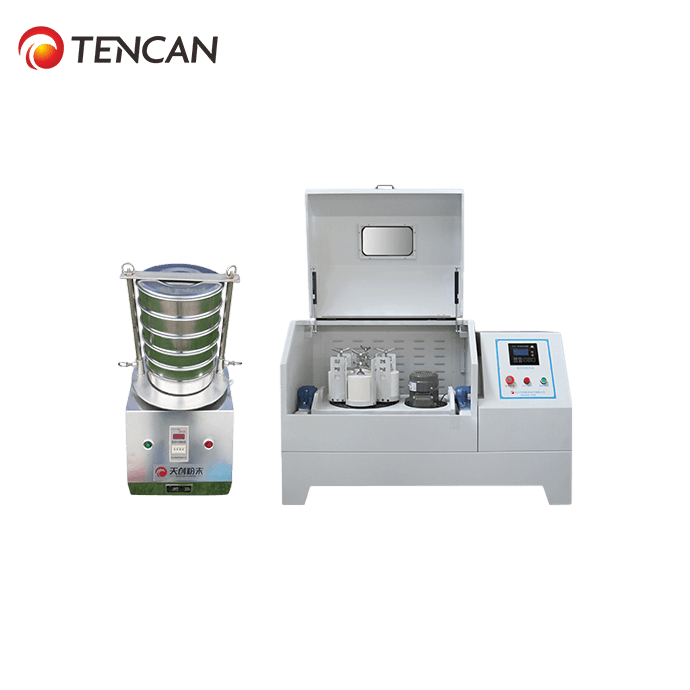

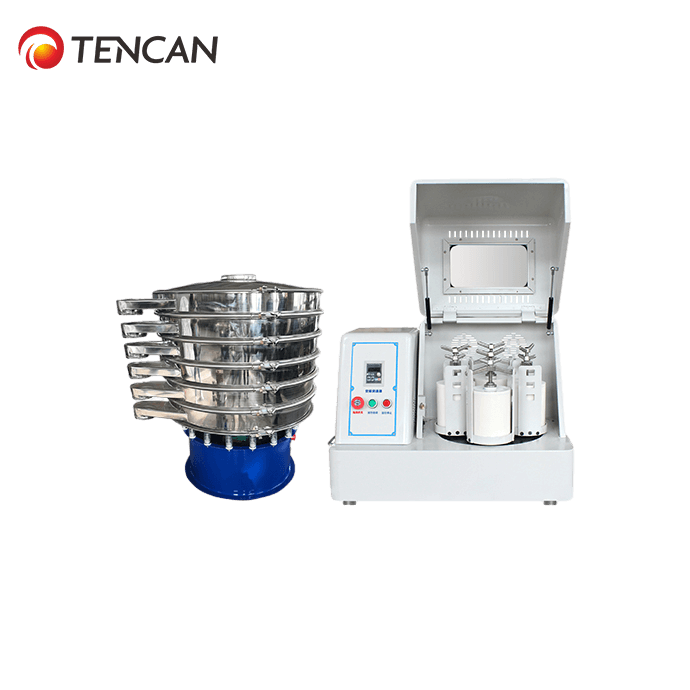

Picture of Soil Grinder and Sieve Shaker
