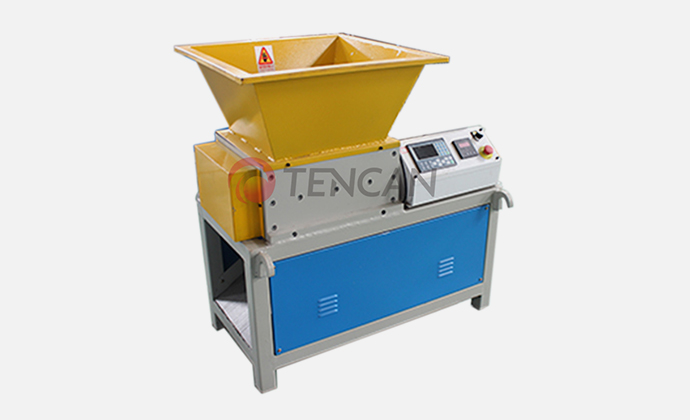

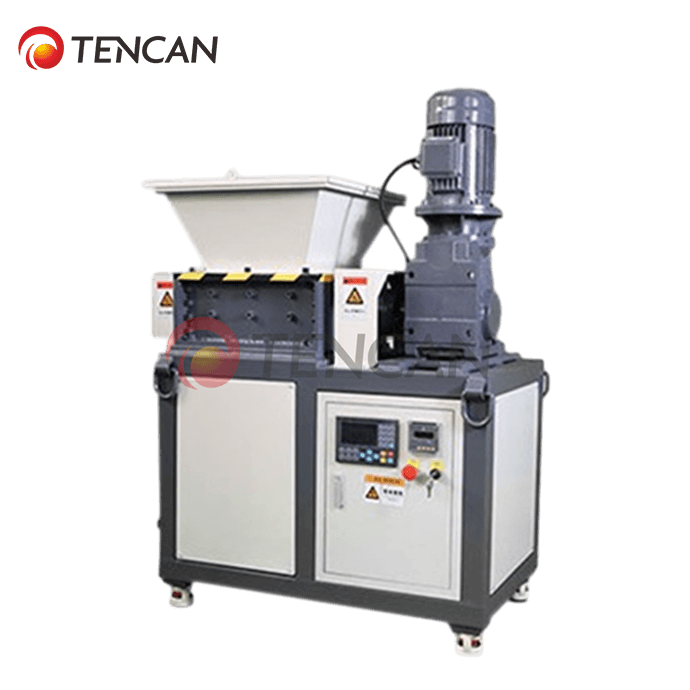

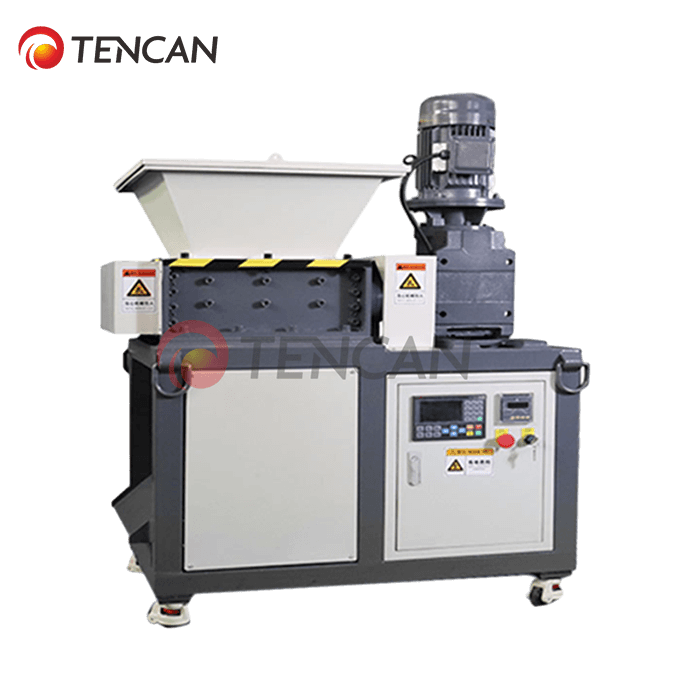

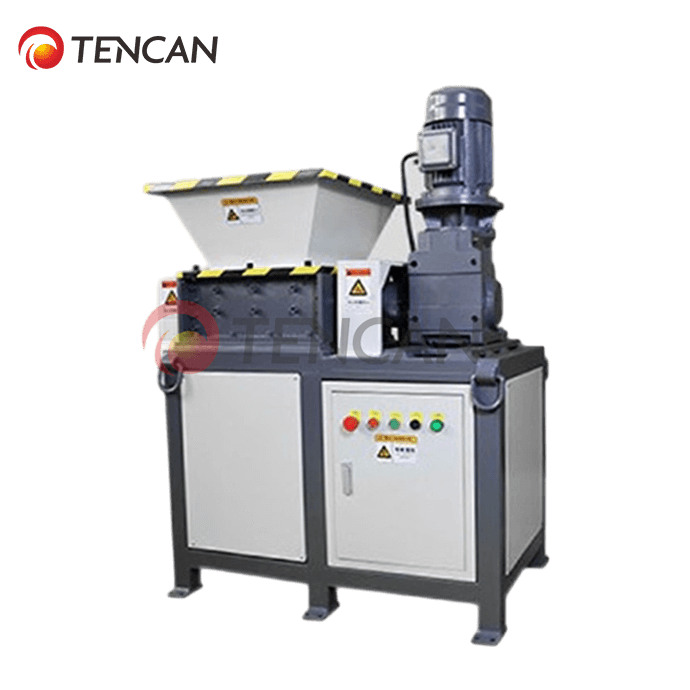

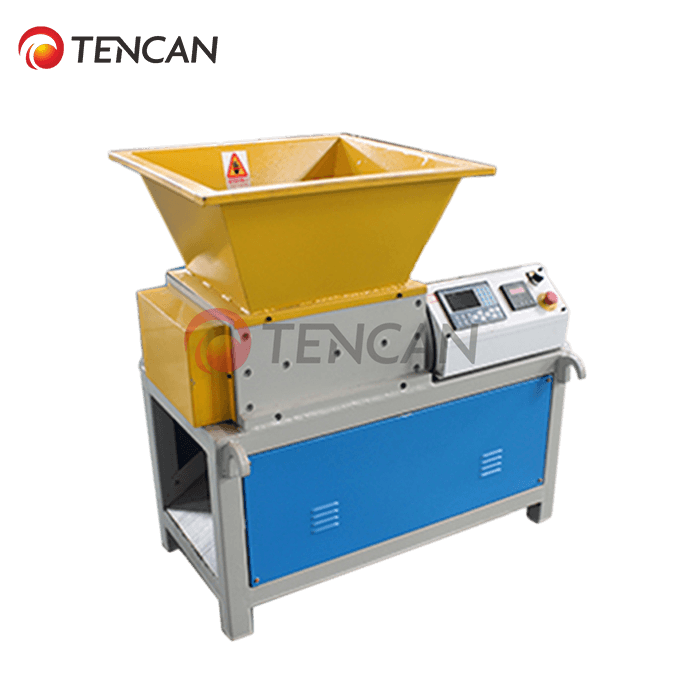

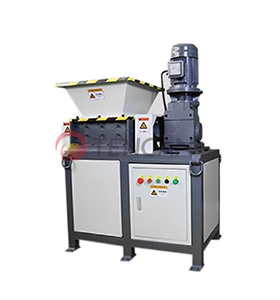

Is also called as waste metal shredder, double shaft shredder, wood shredder, tire shredder, plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubber shredder, aluminum shredder, etc. The main function of shredder is to squeeze the large-sized materials and large-diameter round barrel metal materials which are not convenient for transportation by shearing of the shredder, and tear them into sheets of materials that meet your requirements.
Generally, shredder is used for shredding hard to break solid materials such as plastic, rubber, large tires, large nylon materials, rubber head materials, automobile bumper, large fishing screens, large pipes, fibers, paper, wood, electrical parts, cables, PET bottles, cardboard, circuit boards, wood, plastic barrels, etc.
Table 1
| Product Name | Shredder |
| Model No. | EB300*200 |
| Motor Power Supply | 380V-50Hz, 3 phase 3KW |
| Reducer Model No. | JL2#-32 |
| Electronic Control | Thermal relay protection |
| Input Speed | 16 rpm |
| Torque | 1600 Nm |
| Diameter of input shaft | Φ50mm |
| Knife Size & Material | Φ180*12,3Cr13 (Food Grade) |
| Quantity of knife | 24 pcs |
| Material of Feed Bin | 304 Stainless steel |
| Material of Discharge Bin | 304 Stainless steel |
| Machine Frame | 304 Stainless steel |
| Other sheet metal and safety cover | 304 Stainless steel |
| Net Weight | About 410 kgs |

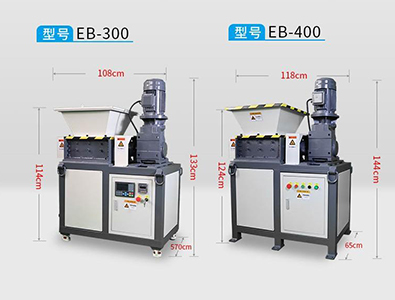

| Dimensions | 1080*570*1330mm |
Table 2
| Product Name | Shredder |
| Model No. | EB400*200 |
| Motor Power Supply | 380V-50Hz, 3 phase 4KW |
| Reducer Model No. | JL3#-12 |
| Electronic Control | Thermal relay protection |
| Input Speed | 12 rpm |
| Torque | 2919 Nm |
| Diameter of input shaft | Φ60mm |
| Knife Size & Material | Φ180*15,9CrSi (Food Grade) |
| Quantity of knife | 26 pcs |
| Material of Feed Bin | 304 Stainless steel |
| Material of Discharge Bin | 304 Stainless steel |
| Machine Frame | 304 Stainless steel |
| Other sheet metal and safety cover | 304 Stainless steel |
| Net Weight | About 500 kgs |
| Dimensions | 1180*650*1450mm |
1.The double cutter shaft mechanism uses multiple pieces and multi claws, and cooperates with the cutter shaft to change angle. It saves energy during cutting, has strong cutting force and shows strong breaking ability.
2.The motor is driven by the gearbox transmission system with low speed and high torque to complete crushing.
3.Large transmission wheel is made of high quality steel, and is hardened by heat treatment, and it has a long service life.
4.The gear box adopts oil inlet pulley, which is smooth in operation, low in noise, large in torque, and resistant to long-time operation.
5.Low speed and high torque design provides low noise and less dust, and maintains a good working environment.
1.Industrial waste / domestic waste: domestic waste, waste wood, kitchen waste, waste products, factory waste, municipal sludge, glass fiber reinforced plastics, pulp residue and oil cloth;
2.Renewable materials – branches, leaves, stalks, corn cobs, wheat stalks, bark, garden garbage;
3.Recycling wastes – waste tires, waste paper, waste plastics, plastic bottles, chemical barrels, aluminum materials;
4.Destruction of product documents a computer hard disk, documents, unqualified products, expired drugs, plastic parts,
5.Waste disposal: medical waste, radioactive materials, organic waste and hazardous solid waste;
6.Metal solid wastes – paint barrels, paint cans, iron oil barrels, metal wastes, aluminum wastes.
