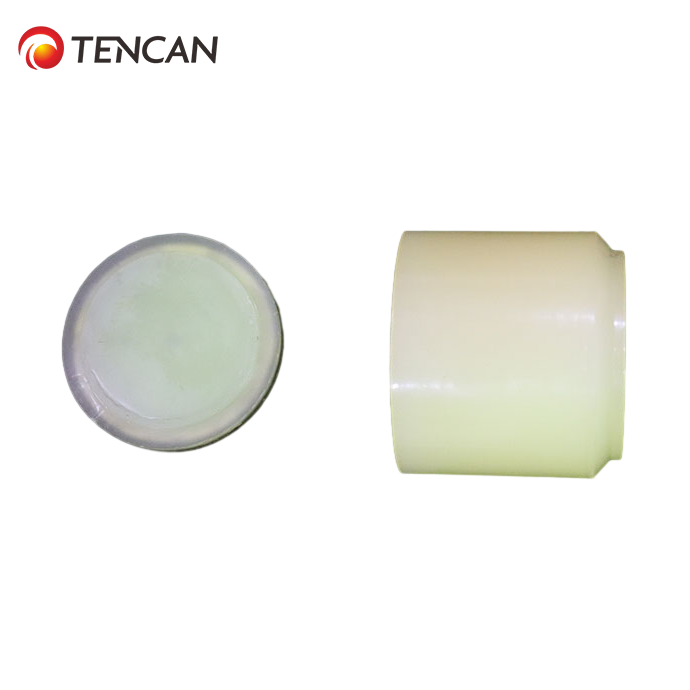

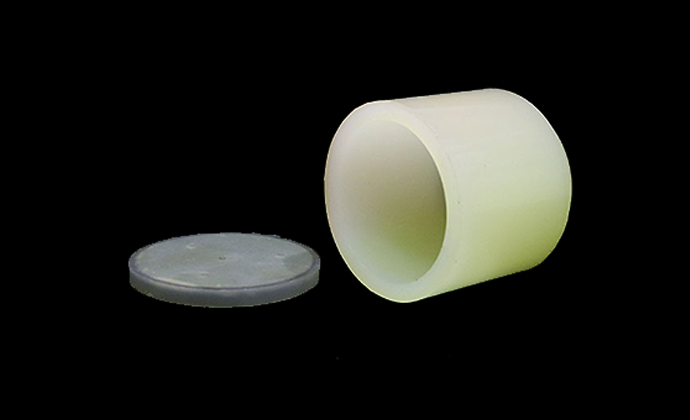

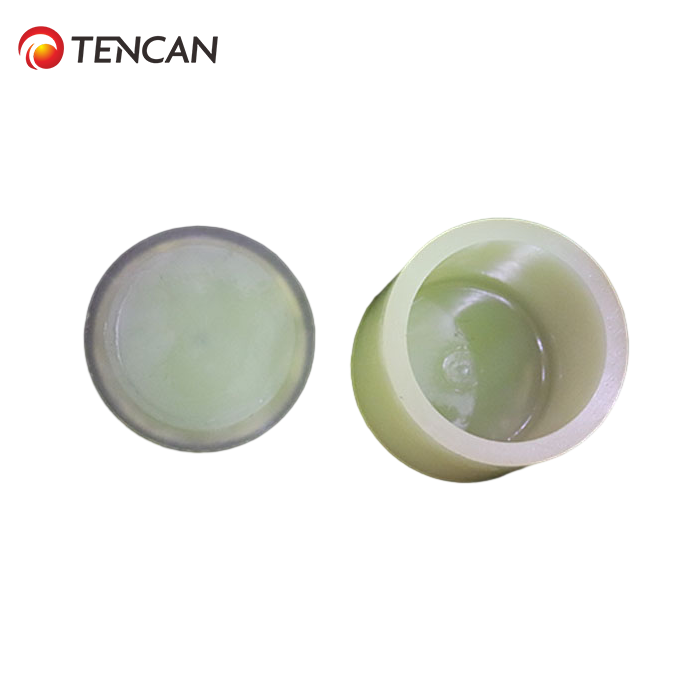

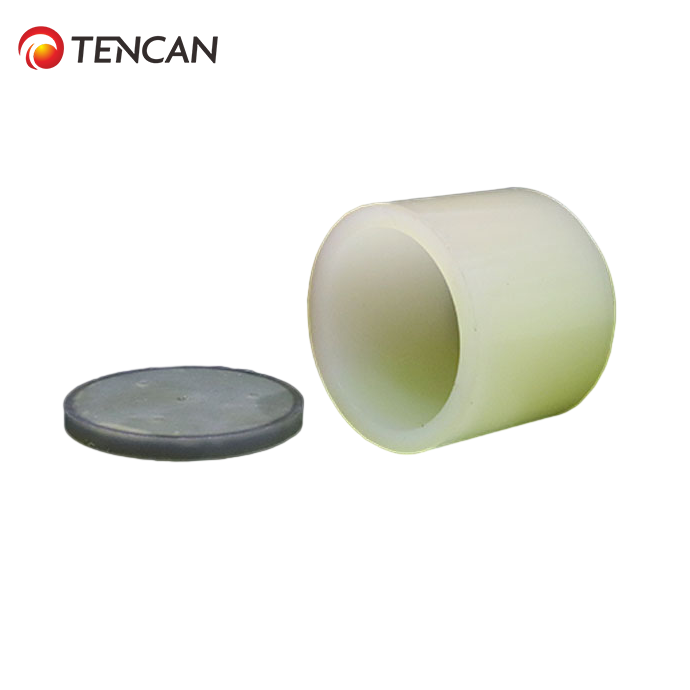

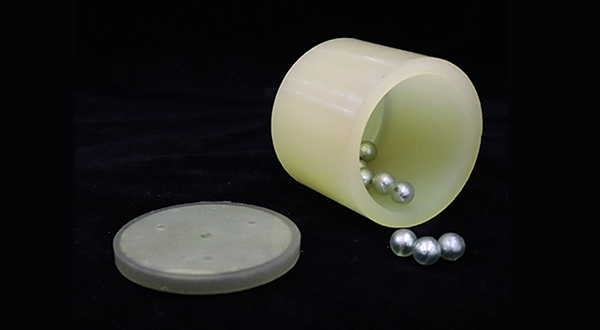

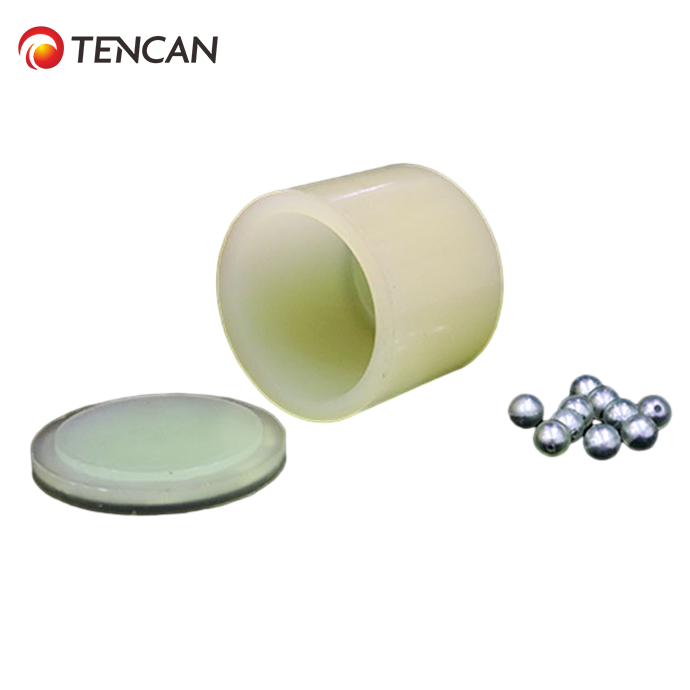

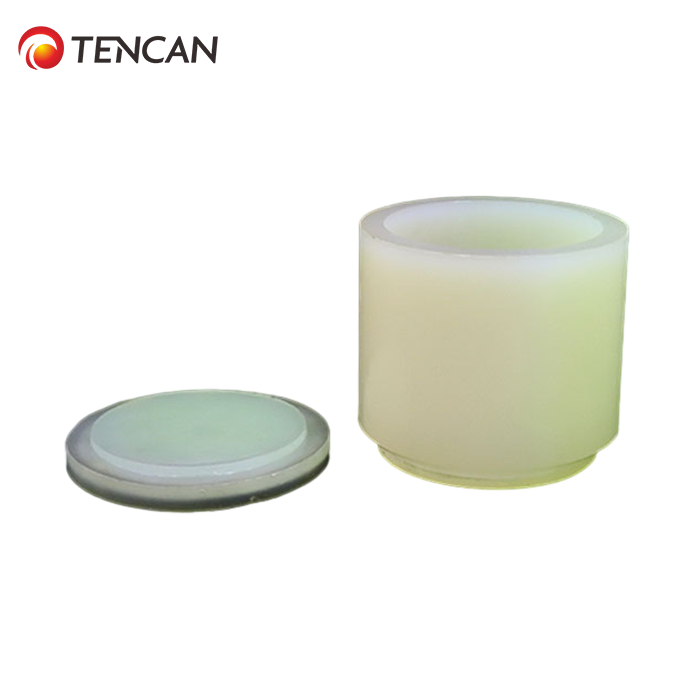

High wear-resistant polyurethane mill jar has an excellent performance in electronic industry and battery material. It does not bring harmful impurities into grinding materials in working process, and ensures quality of the electronic products. TENCAN polyurethane mill jar is an integrated structure with magnanimous arc angle and thick jar mill. it is convenient to open and close over, and is sealed tightly with transparent body. PU mill jar is also hard and durable for use with its beautiful shape. Problems such as big gap, leaks, and dead angel of storage never appear in working process.
|
Parameters of Polyurethane Mill Jar |
||||||
| Volume of Jar | Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) | Height of Not Containing Cover (mm) |
Total Height (mm) |
Weight (KG) |
| 100ml | 53 | 68 | 52 | 59 | 69 | 0.46 |
| 250ml | 74 | 98 | 73 | 83 | 90 | 1.17 |
| 500ml | 87 | 106 | 85 | 94 | 104 | 1.38 |
| 1L | 105 | 132 | 113 | 123 | 135 | 2.73 |
| 1.5L (packaged 3mm stainless steel) | 116 | 132 | 145 | 153 | 161 | 3.68 |
| 3L(packaged 3mm stainless steel) | 139 | 159 | 203 | 215 | 223 | 5.62 |
| 5L(packaged 3mm stainless steel) | 168 | 192 | 228 | 240 | 251 | 10.53 |
| 10L(packaged 3mm stainless steel) | 219 | 243 | 262 | 275 | 286 | 19.33 |
| Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG | ||||||
1. Resistant to strong acid, alkali.
2. High temperature resistance.
3. Wear resistance.
