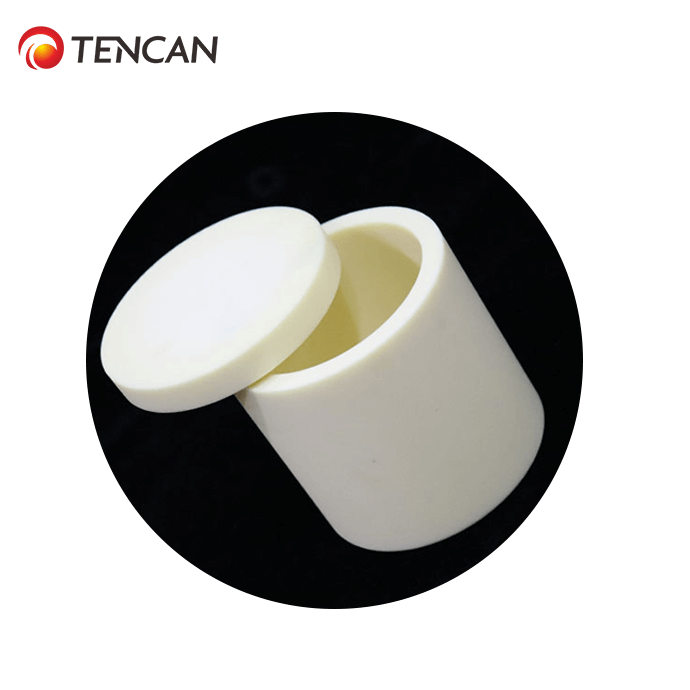

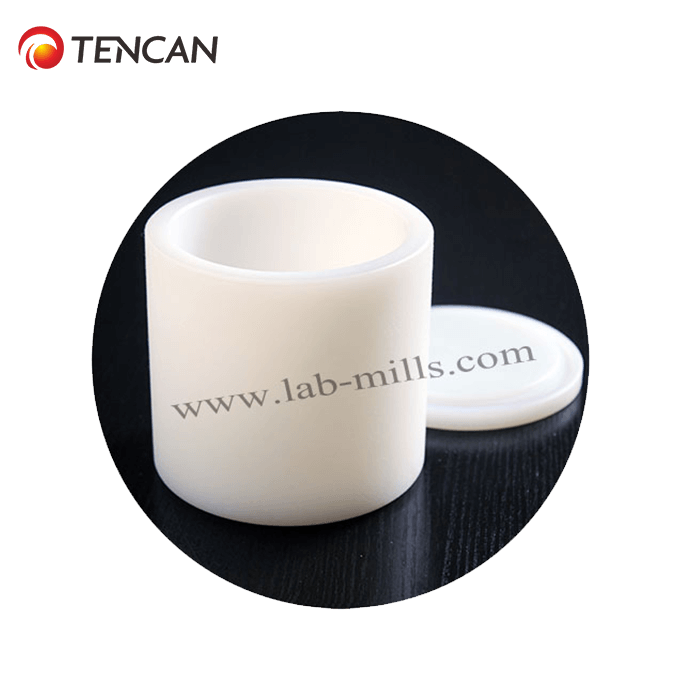

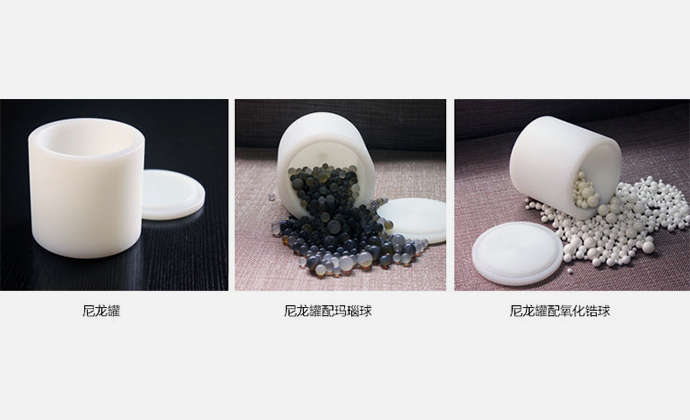

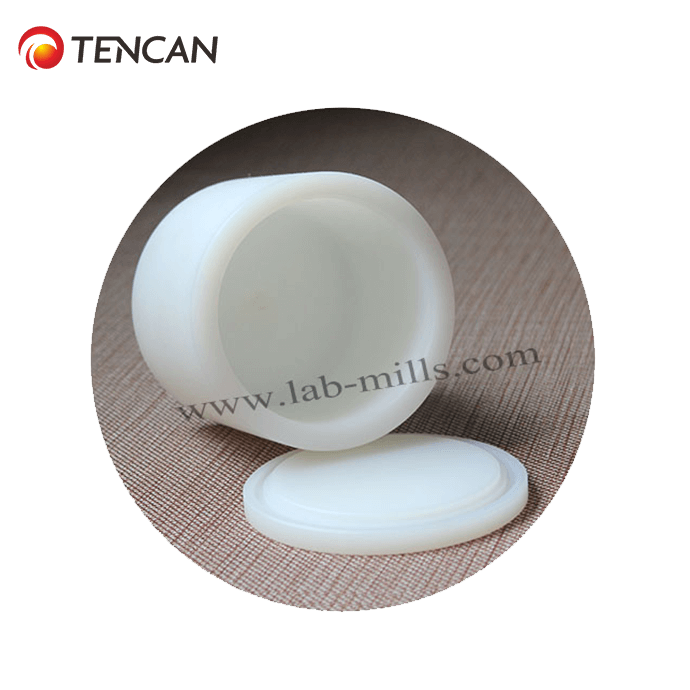

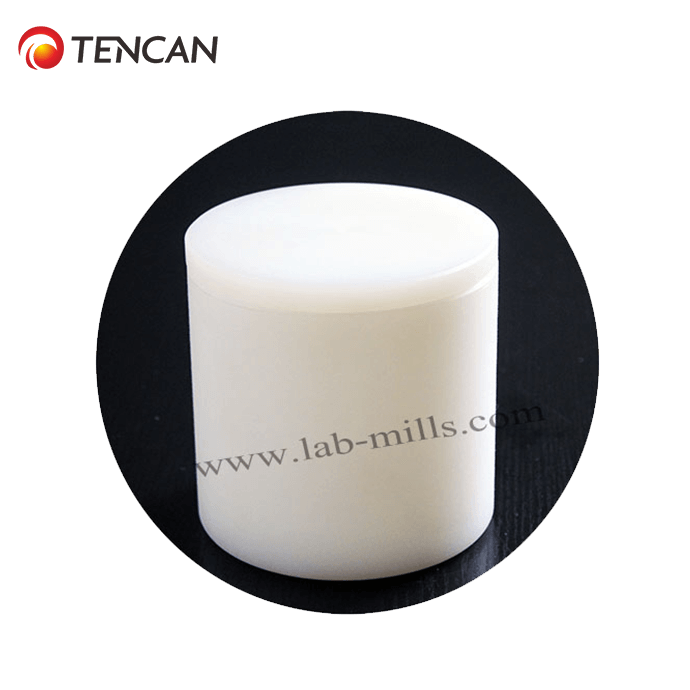

Nylon mill jar is a kind of high quality mill jar which contains metallic impurity, it is the preferred mill jar for all kinds of mental and high-grand pigment mill, thus nylon mill jar can be widely used in precious metals, electronic ceramics, magnetic materials, pigment, paint etc.
|
Parameter of Nylon Mill Jar for Planetary Ball Mill |
||||||
| Volumn of Jar | Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) | Height of Not Containing Cover (mm) |
Total Height (mm) |
Weight (KG) |
| 25ml | 31 | 63 | 40 | 56 | 65 | 0.21 |
| 50ml | 43 | 63 | 40 | 50 | 59 | 0.15 |
| 100ml | 48 | 68 | 55 | 65 | 76 | 0.21 |
| 250ml | 68 | 88 | 75 | 85 | 98 | 0.39 |
| 500ml | 88 | 108 | 90 | 100 | 115 | 0.61 |
| 1L | 109 | 133 | 118 | 130 | 142 | 0.98 |
| 1.5L | 109 | 133 | 154 | 166 | 178 | 1.18 |
| 2L | 134 | 158 | 148 | 160 | 172 | 1.45 |
| 2.5L | 134 | 158 | 178 | 190 | 202 | 1.65 |
| 3L | 138 | 158 | 190 | 200 | 210 | 1.45 |
| 4L | 158 | 178 | 212 | 214 | 226 | 1.67 |
| 5L(packeged 2mm stainless steel) | 190 | 218 | 186 | 200 | 217 | 4.97 |
| 10L(packeged 2mm stainless steel) | 218 | 246 | 276 | 290 | 307 | 7.83 |
| 15L(packeged 3mm stainless steel) | 243 | 273 | 335 | 350 | 372 | 12.98 |
| 20L(packeged 3mm stainless steel) | 285 | 320 | 320 | 335 | 359 | 16.18 |
| 25L(packeged 3mm stainless steel) | 285 | 320 | 385 | 400 | 424 | 18.74 |
| Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG | ||||||

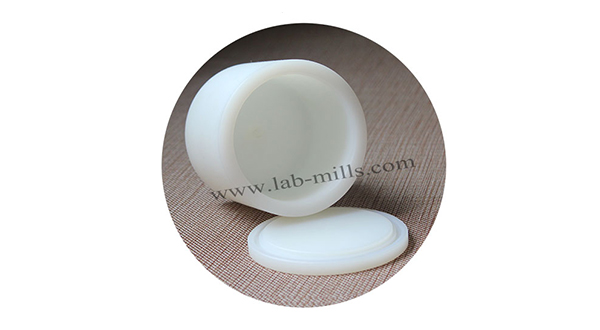

1. Pure white, exquisite appearance.
2. Because of non-metal materials of the jar, there are no metal impurities in grinding process.
3. Professional design, manufacturing precisely with delicate and good looking appearance.
4. High strength, good toughness, perfect sealing performance.
