Lab test sieve shaker is also known as standard inspection screen, test screen, standard analysis screen, standard screen, etc., which is a high-tech fine powder classification equipment developed on the basis of standard test screen. It is the most effective equipment to solve mesh blocking when doing fine powder sample screening in laboratories at present. Lab test sieve shaker can be widely used in laboratories of pharmaceutical, metallurgical, chemical, mineral processing, food and other industries.
| Items | Unit | Parameters | |
| Standard model(SY) | Deck | 8 | |
| Diameter | mm | φ300φ | |
| granularity | mm | 0.008-5 | |
| Noise | dB | ≤50 | |
| Capacity for each batch | Kg | ≤1 | |
| Amplitude | mm | ≤5 | |
| Motor | Volt | V | 220 |
| Rpm | r/min | 1420 | |
| Power | KW | 0.125 | |
| Overall size | mm | 360×300×736 | |
| Weight | Kg | 25 | |
1.It is equipped with optimized integrated circuit control with function and simple operation.
2.A kind of granular material can precisely separate 2-9 particle segments at the same time.
3.It can be used for analysis of fineness and impurity content of slurry.
4.Low noise, light weight, table operation without fixing.
5.Frequency, mode and amplitude of vibration can be adjusted effectively.
Lab test sieve shaker is widely used in metallurgy, particle, chemical, healing drugs, building materials, geology and national defense industries study and production. It is mainly used for screening, filtering and testing powder, particles, solid content of liquid, and debris content. Its standard test sieve screen is made of metal woven screen and punched plate, and mesh size is often at buyer’s option based on customer’s requirements.

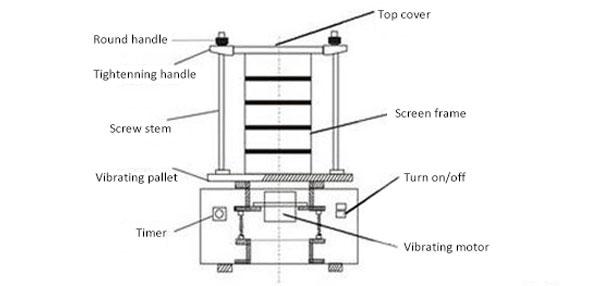

Structure Diagram of Lab Test Sieve Shaker
