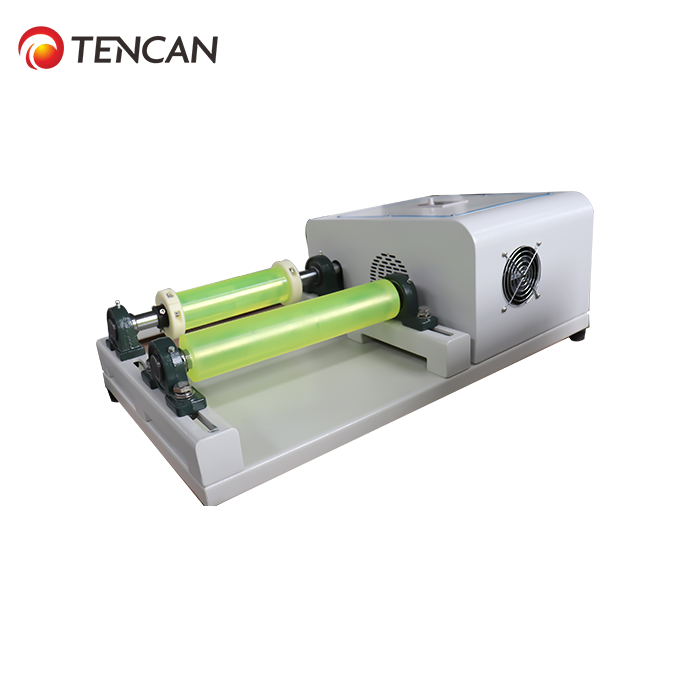

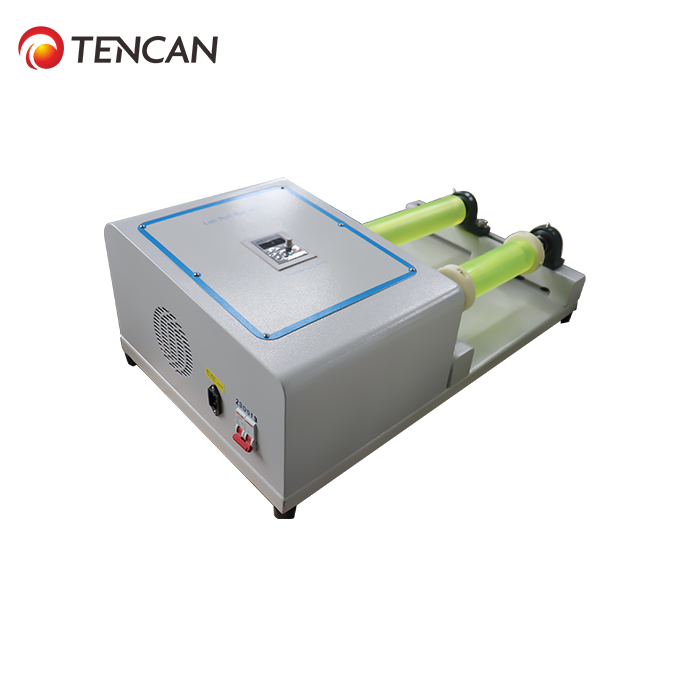

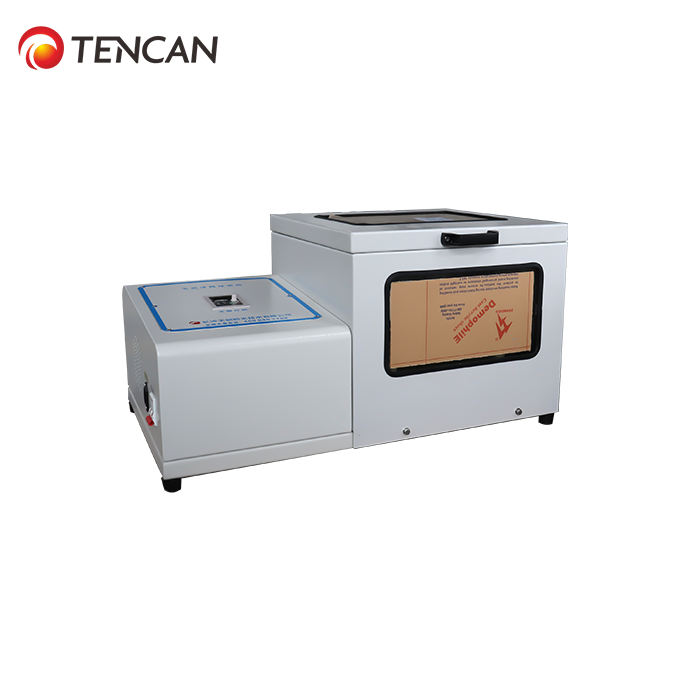

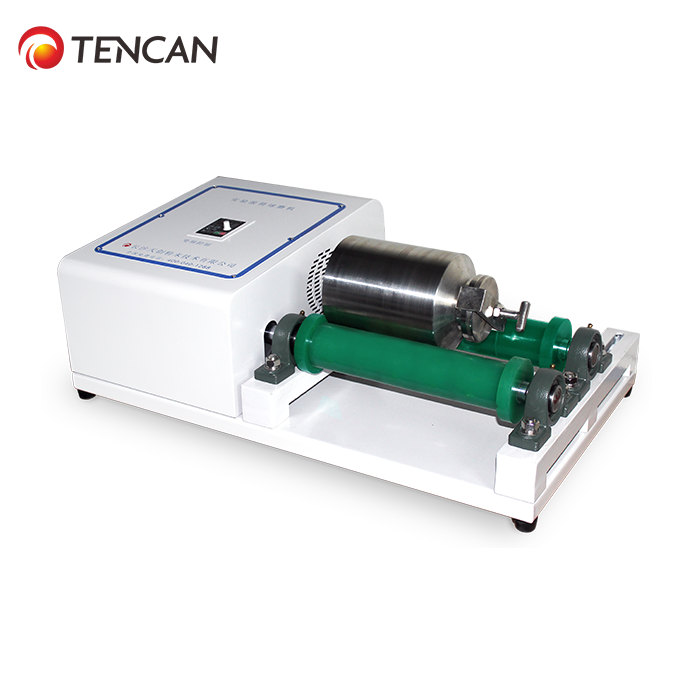

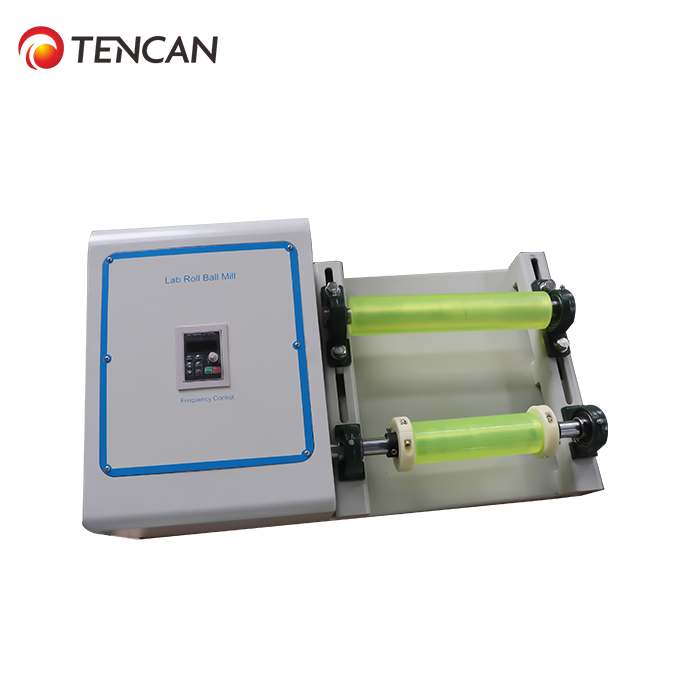

Lab Roll Ball Mill

Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design
SHARE PRODUCT
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill
Lab Roll Ball Mill

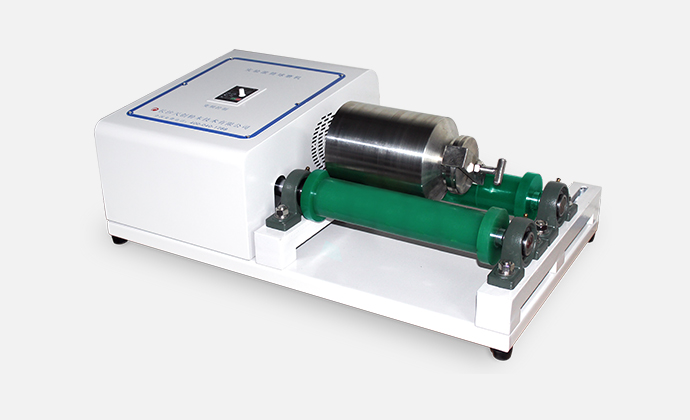

Overview of Lab Roll Ball Mill
Lab Roll Mill

Is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.

Technical Parameters of Lab Roll Ball Mill
Technical Data of Lab Roll Ball Mill
Technical Parameters of Lab Roll Mill Mill
Category Model Power Supply Rotate Speed Max Load for Each Jar Dimensions

/weight

1 Working Position

QM-5

220V or 110V Single phase

0.37KW



60-570rpm



35KGS

730*415*260mm

32KGS

1 Working Position QM-15 220V or 110V Single phase

0.37KW



60-570rpm



80KGS

845*435*270mm

45KGS

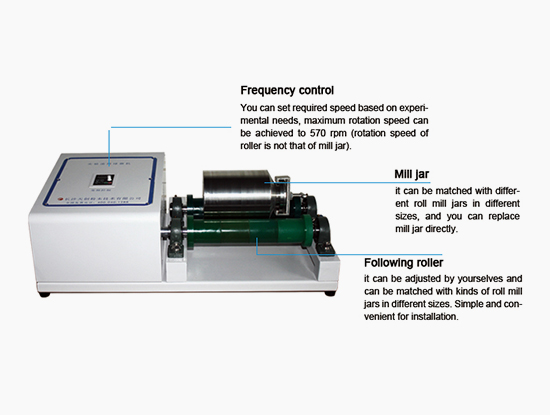

Work Principle of Lab Roll Ball Mill

When the roll ball mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.

01.Frequency Control
You can set required speed based on experimental needs, maximum rotation speed can be achieved to 570 rpm (rotation speed of roller is not that of mill jar).
02.Mill Jar
It can be matched with different roll mill jars in different sizes, and you can replace mill jar directly.
03.Following Roller
It can be adjusted by yourselves and can be matched with kinds of roll mill jars in different sizes. Simple and convenient for installation.

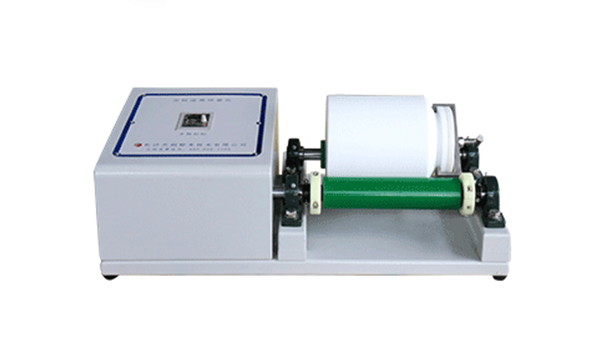

Features of Lab Roll Ball Mill
Feature/Advantages

1. Compact structure, easy operation



2. High efficiency and uniform granularity



3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.



4. It is convenient to change pots and suitable for both wet and dry grinding.

Applications of Lab Roll Ball Mill

Available & Matched Accessories
Our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.



Jar Mill



Available Roll Mill Jars & Specifications



Description of Roll Mill Jars Available Specifications
Normal ceramic roll mill jar From 1.0L to 15L
304 Stainless steel roll mill jar From 0.5L to 20L
Corundum) roll mill jar From 0.5L to 10L
Nylon roll mill jar From 0.5L to 20L
Polyurethane roll mill jar From 0.5L to 20L
PTFE/Teflon roll mill jar From 0.5L to 20L
Tungsten carbide roll mill jar From 250ml to 3L
Roll jacket (Stainless steel) 0.5L to 3L
316l Stainless steel roll mill jar Customized



Matching Solutions Recommendation for Materials & Mill Jars



Materials & Requests Recommended Solutions
Soil materials and other materials which are not allowed with any impurity contamination Agate mill jar
Metal or nonmetal which are not allowed with any impurity contamination Zirconium mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials, or other materials under high temperature PTFE mill jar
Iron ore materials or other materials with low impurity sensitivity 304 stainless steel mill jar
Pigment or materials with later processing under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
