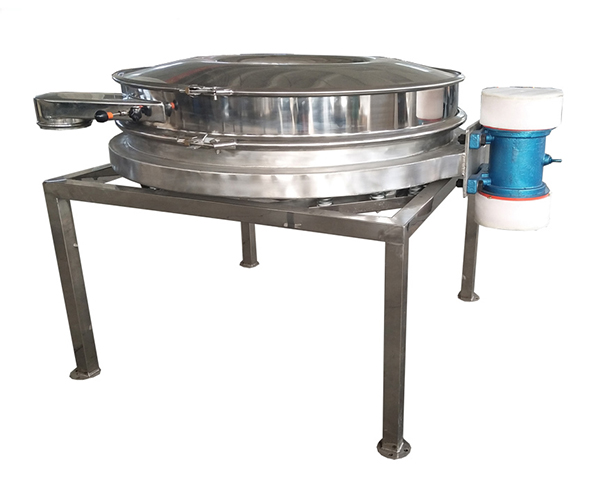

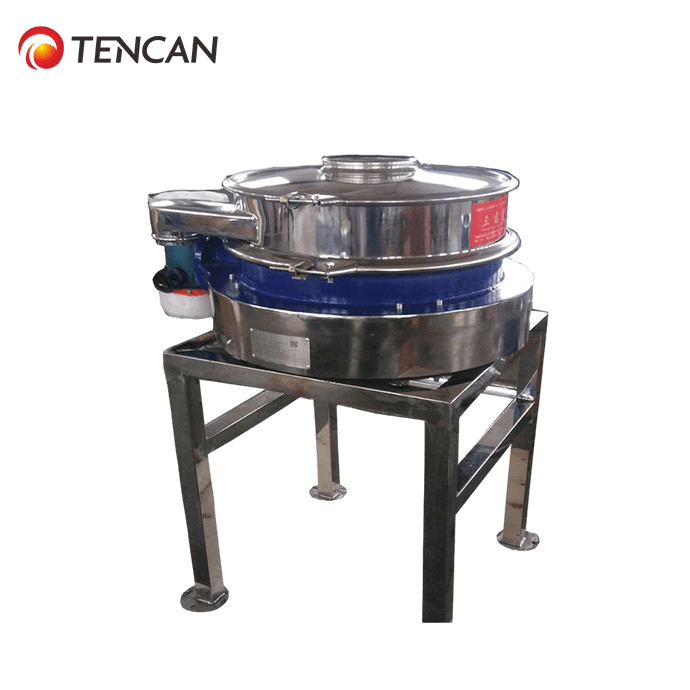

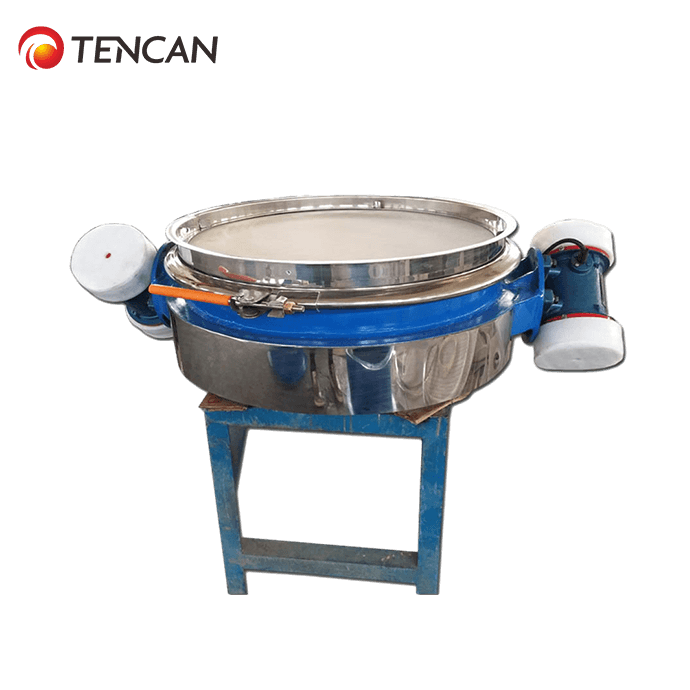

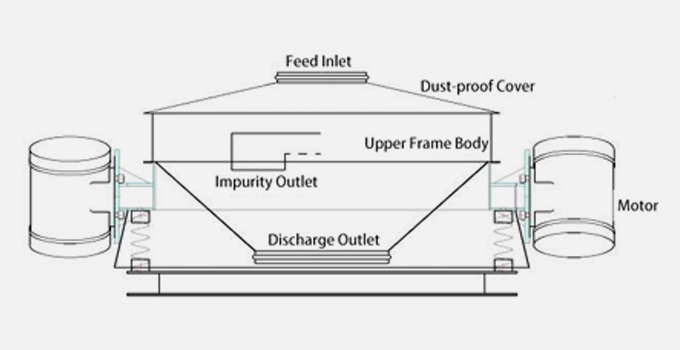

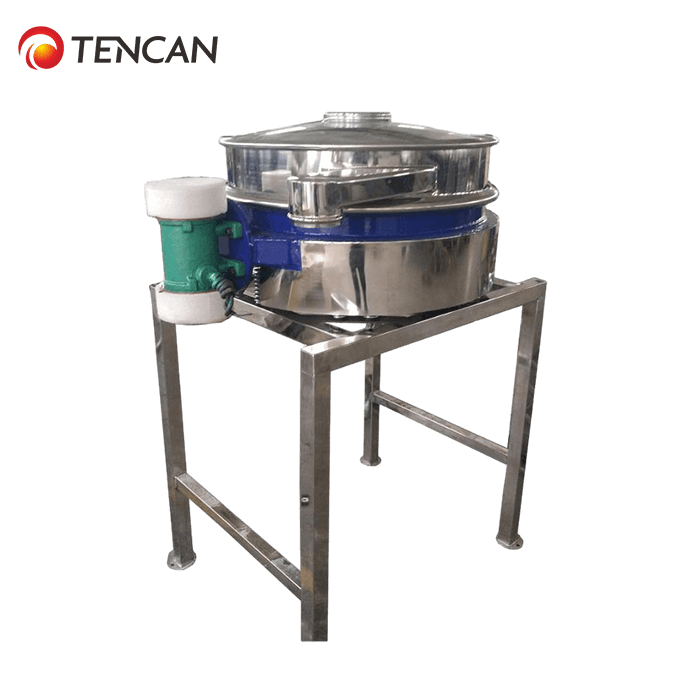

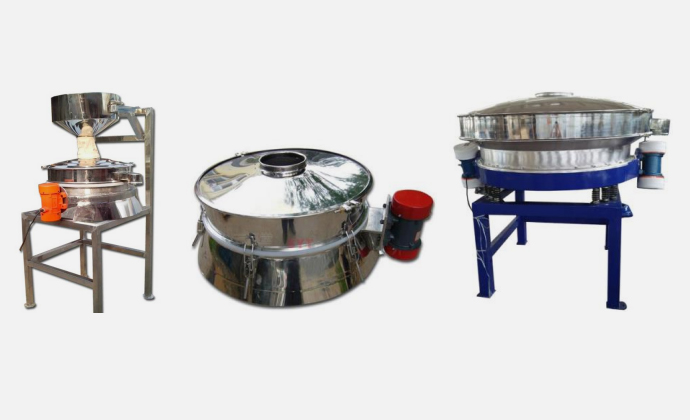

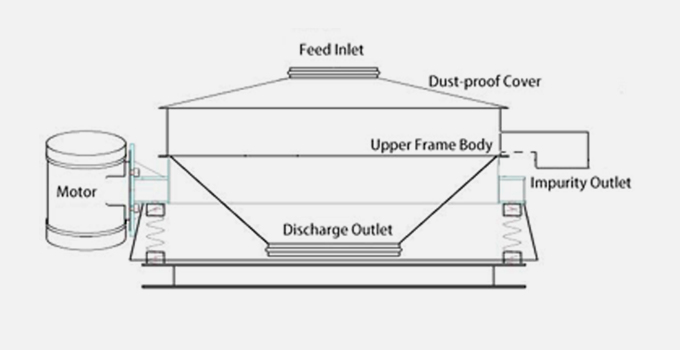

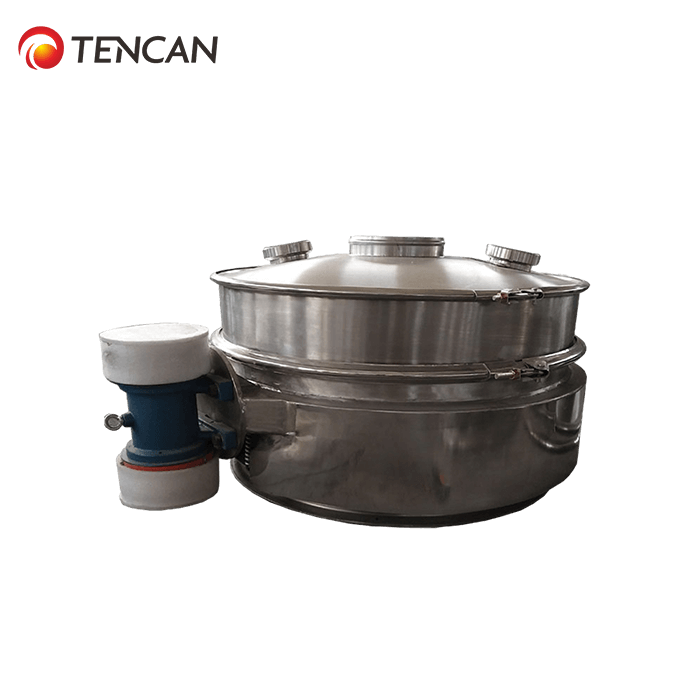

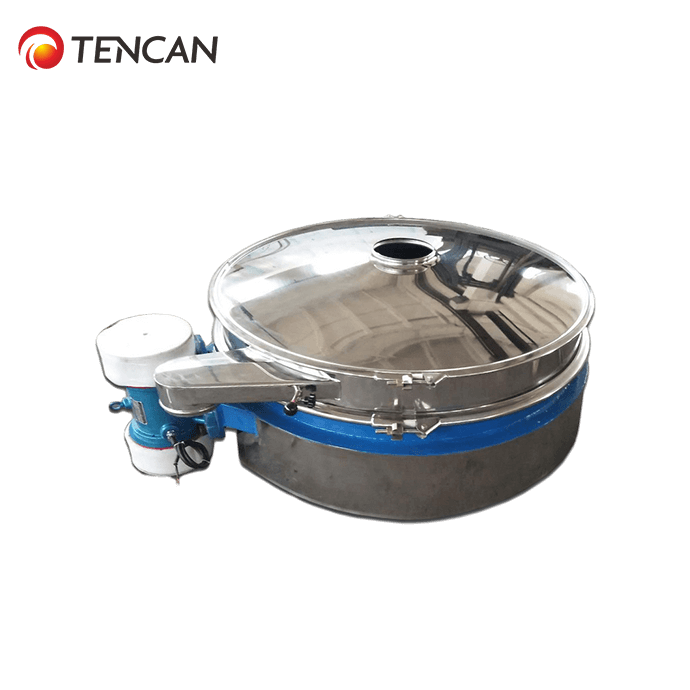

Direct discharge vibrating screen has two structure of single and double motors as its vibrating power source for option, which is mainly used for tough screening of particle powder. There are multiple adjusting ways for material running track, and applicability of the machine is significantly improved. Direct discharge of material has leads to much larger processing capacity. Due to large capacity and high productivity, direct discharge vibrating screen is often applied for tough and precise screening of particles and powder in fields of flour, starch, washing powder, metal powder, additive, chemical industry, non mineral industry and other industries. Further this machine is easy to be combined with production line ranging from 600mm to 1800mm. It has become popular by end users owing to its advantages of large screening capacity and easy combination with production lines.
| Model No. | SY-600 | SY-800 | SY-1000 | SY-1200 | SY-1500 |
| Single
Motor Power |
0.12KW | 0.18KW | 0.25KW | 0.55KW | 0.55KW |
| Double Motor Power | 0.12KW*2 | 0.18KW*2 | 0.18KW*2 | 0.25KW*2 | 0.55*2 |
| Screen Diameter | 520mm | 720mm | 890mm | 1090mm | 1390 |
| Active Area | 0.2124 | 0.4072 | 0.6221 | 0.9331 | 1.5175 |
| Dimensions | 740*600*500mm | 1010*800*600mm | 1200*970*640mm | 1430*1170*790mm | 1780*1470*760mm |
1. Flat design, convenient for manual operation and movement, small volume.
2.It can be connected with production line, low energy consumption and high working efficiency.
3. The internal and external parts are easy to be cleaned without dead corner, meeting requirements and utilization standards of food and medicine industry.
4. Automatic operation, suitable for 24-hour continuous production.
5. Super lower noise design, normally less than 70 dB.
6. Tight sealing, no leakage of liquid, no flying dust.
7. Square box structure and network frame design, improve durability of the screen, easy to replace the screen within 5 minutes.
8. Convenient to dis-assembly and assembly and easy to clean.
