Is a combination of planetary mill and refrigeration equipment. Most materials will be heated during high-speed grinding due to friction or exothermic reaction, which may lead to changes in physical and chemical properties of materials and produce negative grinding effect. Low temperature planetary ball mill is mainly used in material grinding process which needs strict temperature control.
| Drive Mode | Gear drive |
| Operation Mode | Two or four mill jars can be used for each grinding |
| Max Capacity for Materials | Less than 1/3 of each jar volume
Total max capacity: less than 1/3 of total jars volume |
| Feed Size | Soft and crispy materials ≤ 10mm
Other hard materials ≤ 3mm |

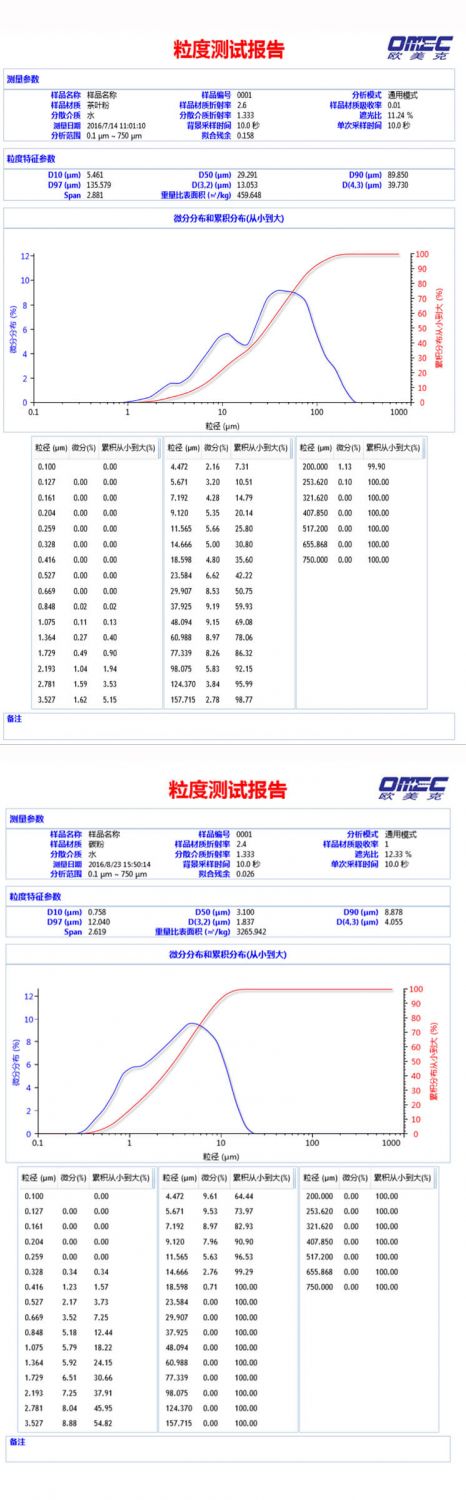

| Output Granularity | Smallest granularity can be achieved to 0.1μm |
| Rotation Speed Ratio | 1:2 |
| Max Continuous Operating Time | 72 Hours |
| Materials of Available Mill Jars | 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Remarks:

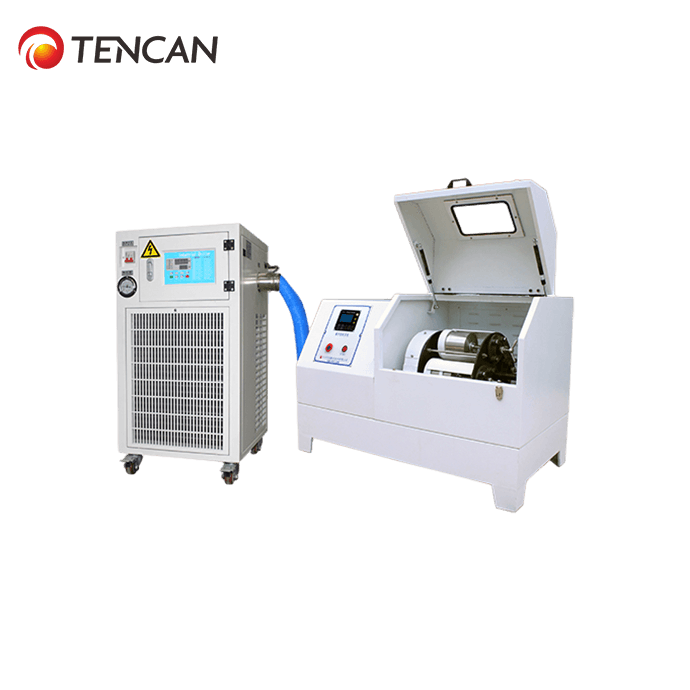

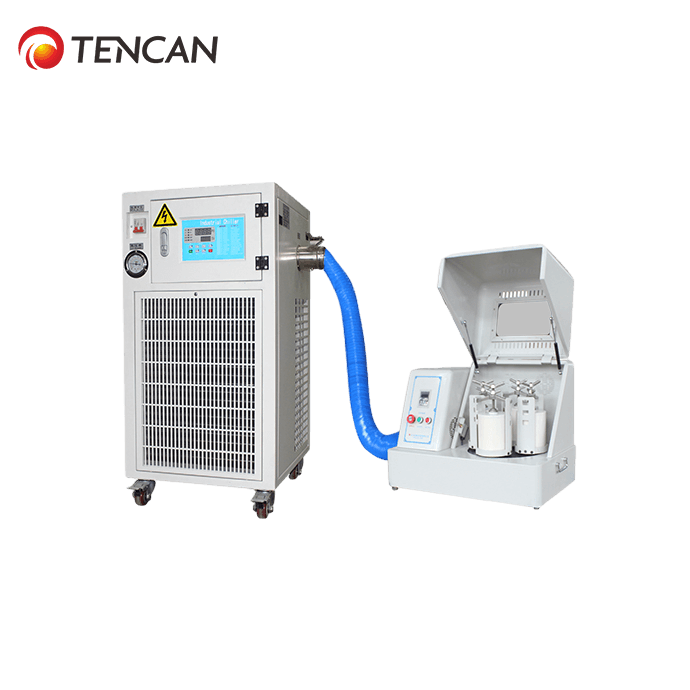

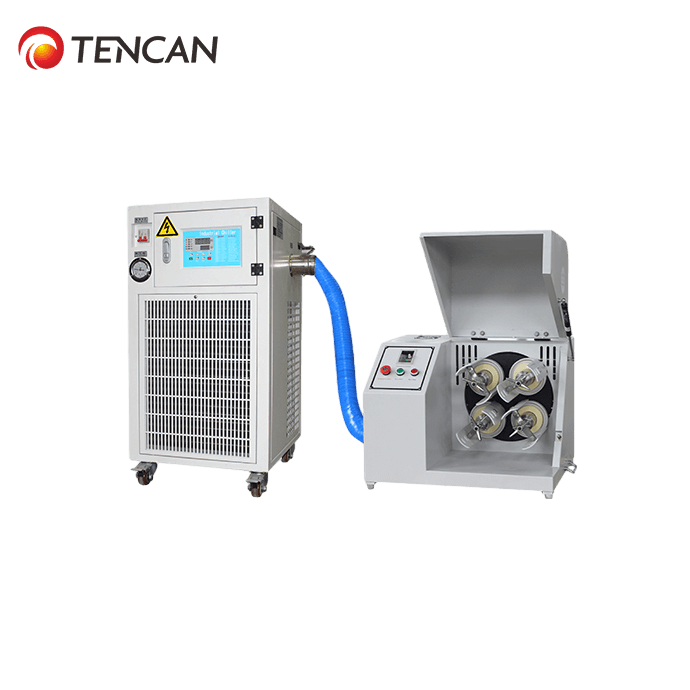

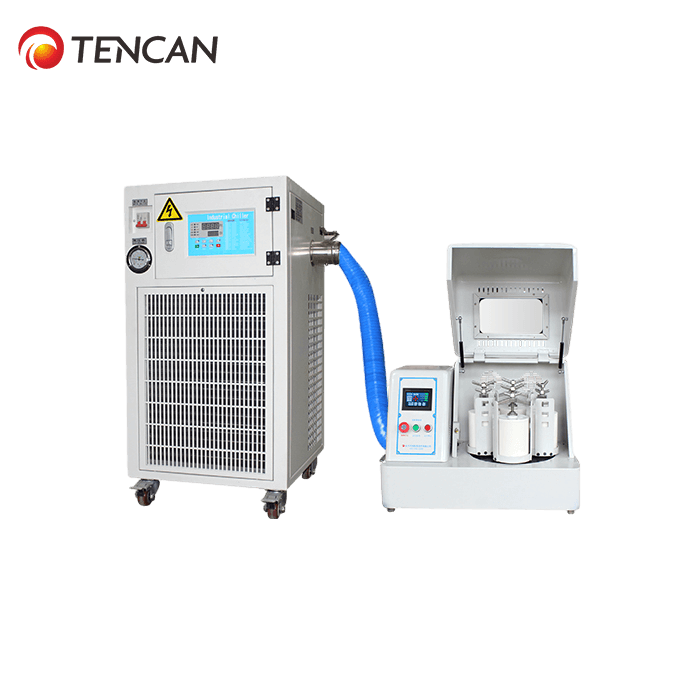

Cryogenic planetary ball mill is combination of planetary ball mill plus air-cooling device, which can be equipped
with vertical planetary ball mill, horizontal planetary ball mill, full-directional planetary ball mill.
Table 1 Technical Parameters For Air-cooling Planetary Ball Mill
| Model No. | Voltage | Power | Rotation Speed | Noise |
| XQM-1(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| XQM-2(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| XQM-4(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| XQM-6(C) | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| XQM-8(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
| XQM-10(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
| XQM-12(C) | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
| XQM-20(C) | 380V-50Hz | 4.0KW | 50-430 rpm | Less than 65db |
| XQM-40(C) | 380V-50Hz | 5.5KW | 40-390 rpm | Less than 68db |
| XQM-60(C) | 380V-50Hz | 7.5KW | 40-260 rpm | Less than 68db |
| XQM-100(C) | 380V-50Hz | 11KW | 40-260 rpm | Less than 68db |
Table 2 Technical Parameters For Cryogenic Planetary Ball Mill
| Model No. | Speed Control | Net Weight | Net Dimensions |
| XQM-1(C) | Frequency Control | 93kgs | 750*470*564mm |
| XQM-2(C) | Frequency Control | 93kgs | 750*470*564mm |
| XQM-4(C) | Frequency Control | 93kgs | 750*470*564mm |
| XQM-6(C) | Frequency Control | 93kgs | 750*470*564mm |
| XQM-8(C) | Frequency Control | 150kgs | 900*600*640mm |
| XQM-10(C) | Frequency Control | 150kgs | 900*600*640mm |
| XQM-12(C) | Frequency Control | 150kgs | 900*600*640mm |
| XQM-20(C) | Frequency Control | 330kgs | 1200*750*920mm |
| XQM-40(C) | Frequency Control | 468kgs | 1400*850*1160mm |
| XQM-60(C) | Frequency Control | 900kgs | 1600*990*1250mm |
| XQM-100(C) | Frequency Control | 1250kgs | 1750*1140*1330mm |

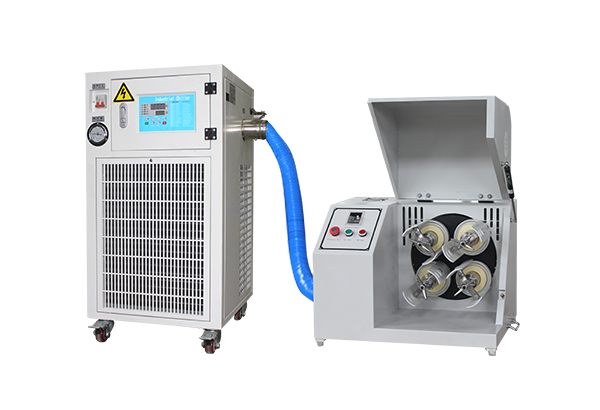

Air-cooling planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground powder can be as small as 0.1mm.

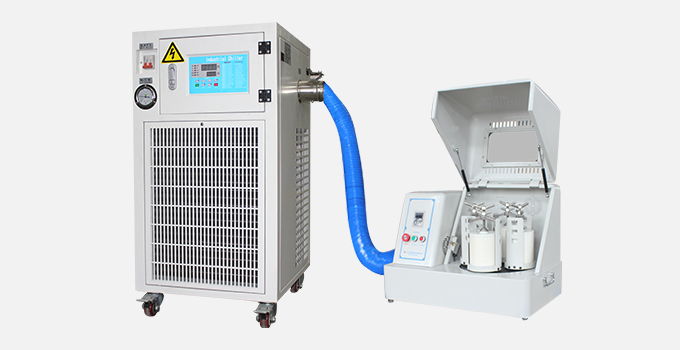

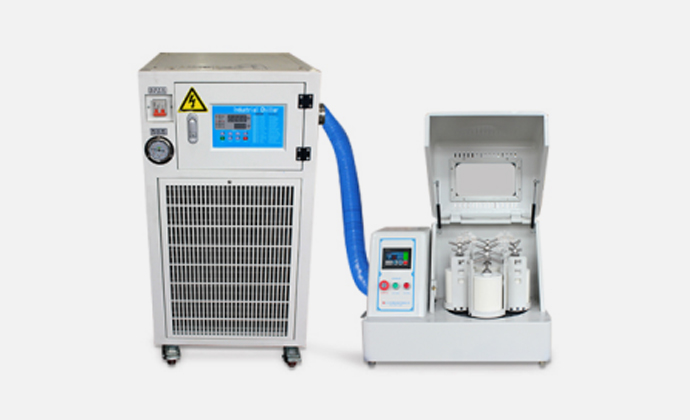

Air-cooling (Low-temperature control) planetary ball mill is a combination of planetary mill and air-cooling device. Air-conditioning compressed refrigeration principle is applied in the air-cooling device. The heat generated by grinding can be quickly removed by air cooling gas cycle. According to the difference of ambient temperature, temperature of ball-milling space can be controlled within 5-15℃. This kind of ball mill is mainly used for ultra-fine grinding under material requirements of low-temperature technology. The air-cooling device has advantages of simple structure, convenient operation, convenient maintenance and lower energy consumption.
1. Suitable for the materials requiring ultra-fine grinding under low temperature.
2. Simple structure.
3. Easy operation.
4. Convenient maintenance.
5. Low energy consumption.
Applications of Air-cooling Planetary Ball Mill
Air-cooling planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for lots of production fields such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass, etc. Production of Powder, Fuel Cell, Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder, Cobalt Oxide Powder, Ni-Zn Ferrite, Mn-Zn Ferrite, etc.
Air-cooling planetary ball mill is mainly applied to ultrafine grinding under condition of low-temperature requested by materials. Compared with the artificial injection of liquid nitrogen cooling, cold-air planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy consumed.
Accessories
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
|
Recommendation For Matching Solutions About Mill Jars & Materials |
|
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
|
References About Grinding Medias & Materials |
||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
|
Matching Solutions for Mill Jars & Balls |
|||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
