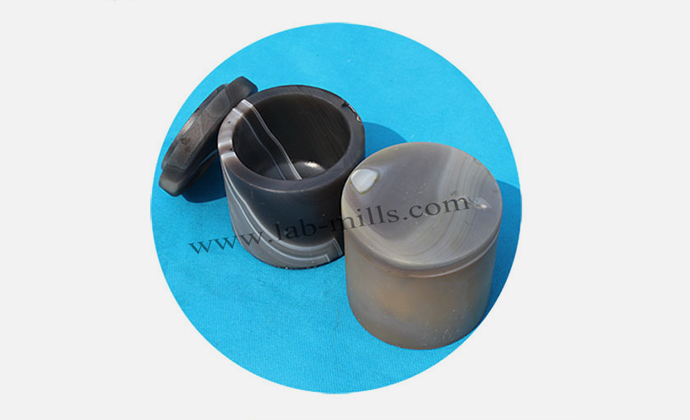

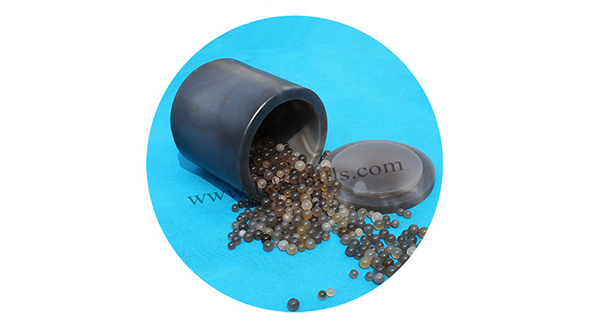

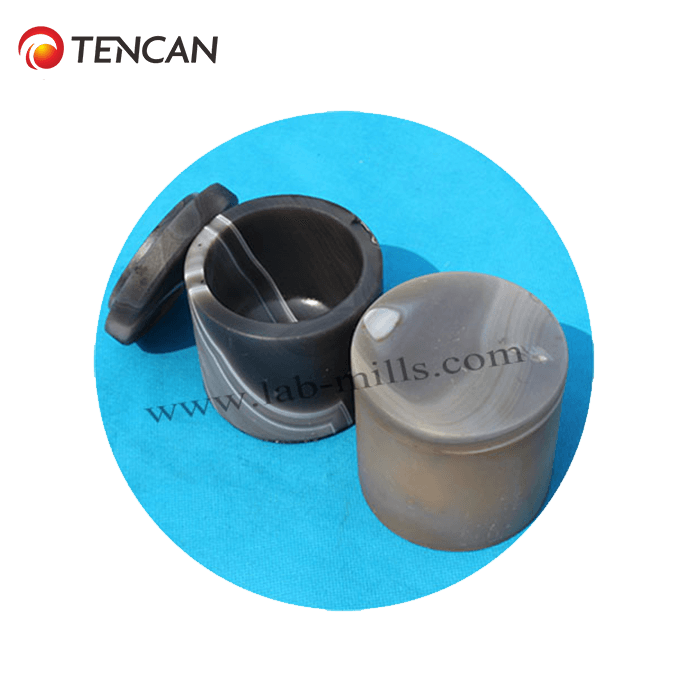

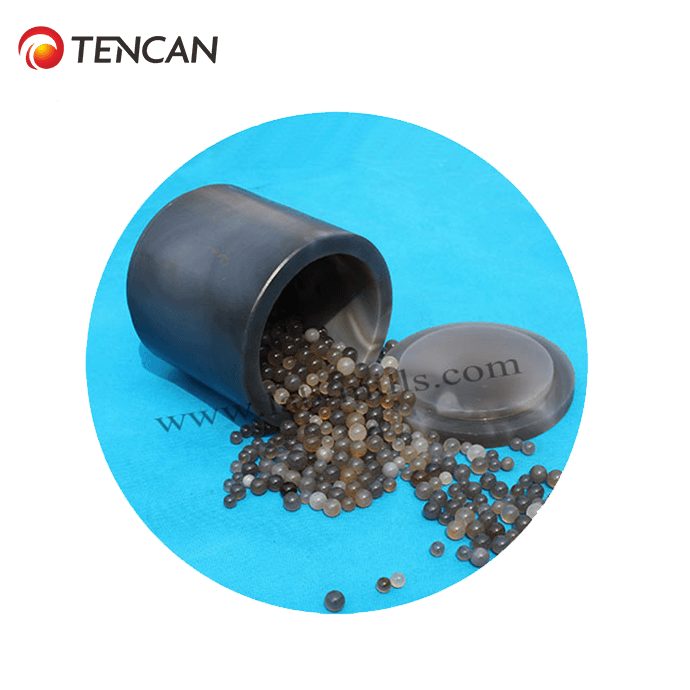

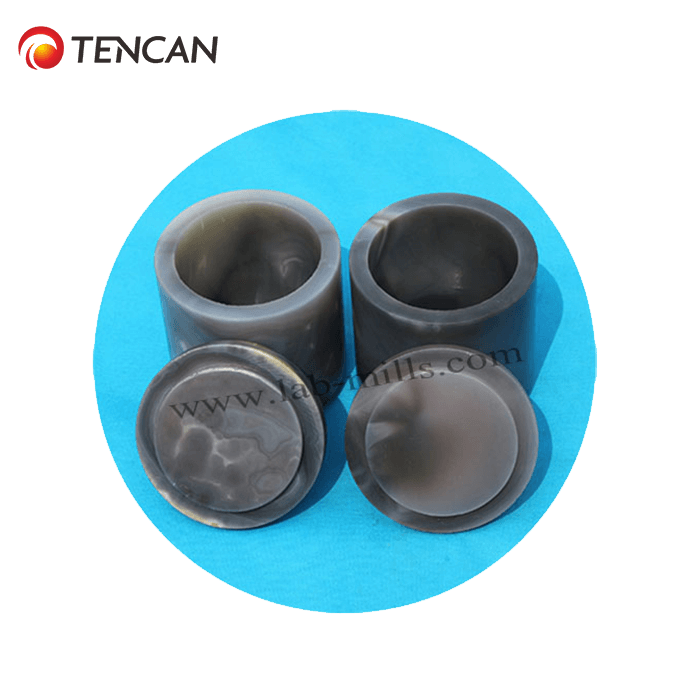

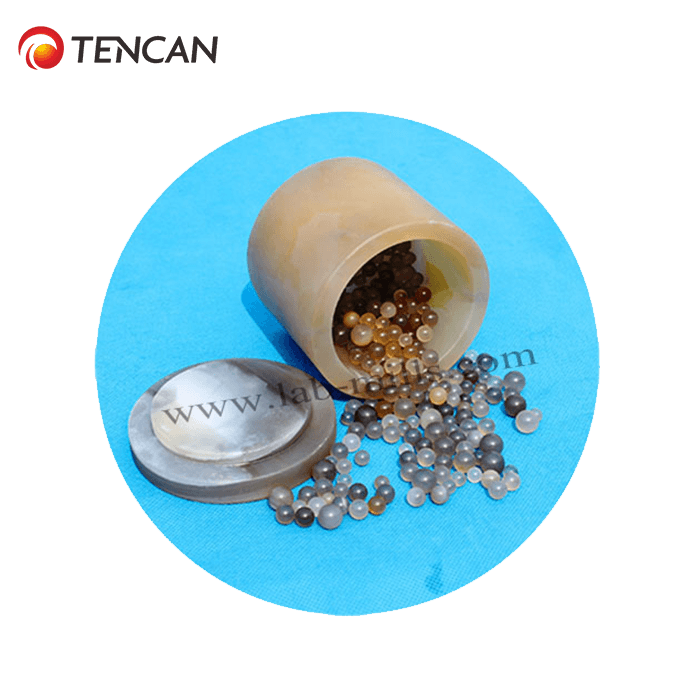

Tencan agate mill jars are made of natural agate with advantages of no impurities, no cracks, glossy, high-quality, strong vibration resistance. After experiments, it shows that the item have no cracks, no bump after high-speed vibration abrasion.
|
Parameter of Agate Mill Jar |
||||||
| Volume of Jar | Outside Diameter (mm) | Inner Diameter (mm) | Inner Depth (mm) | Height of Not Containing Cover (mm) | Total Height (mm) | Weight (KG) |
| 50ml | 65 | 45 | 37 | 49 | 57 | 0.36 |
| 100ml | 75 | 50 | 52 | 62 | 70 | 0.56 |
| 150ml | 90 | 62 | 55 | 70 | 80 | 0.93 |
| 250ml | 94 | 73 | 70 | 80 | 90 | 0.84 |
| 300ml | 102 | 79 | 71 | 81 | 95 | 1.18 |
| 400ml | 106 | 80 | 80 | 93 | 103 | 1.38 |
| 500ml | 106 | 82 | 90 | 100 | 108 | 1.31 |
| 1L | 130 | 107 | 114 | 126 | 141 | 2.54 |
| 2L | 156 | 130 | 150 | 170 | 190 | 4.43 |
| Remarks: 1. Size deviation within ±2mm; 2. Every specification has A or B two grades with the same size(B grade agate packaged 1mm stainless steel outside; 3 The above weight is for A grade agate jars, deviation within ±0.2KG. | ||||||
1. No contamination of metal impurities, no crack, high gloss, resistance to strong shaking force. Experiment has proved that after high speed vibration and wearing, agate jar has no crack or no bump phenomenon.
2. TENCAN agate mill jar is made of Brazil and Uruguay agate nature raw material with bright color and high hardness.
3. With characteristics of high temperature resistance, strong acid resistance and alkali resistance. Agate mill jar can be used in the acid grinding media.
