OVERVIEW OF VIBRATING SIEVE SCREEN

Vibrating screen is a common screening equipment, whose main working principle is to use vibration force to screen materials on the screen, separating materials according to particle size.
Specifically, the vibrating screen consists of components such as a screen box, vibrator, bracket, and screen mesh. When the vibrator starts working, it will generate a certain amount of vibration force to place the material on the sieve, and through the action of the vibration force, the material will be screened on the sieve to achieve the purpose of separation.
In addition, the working principle of the vibrating screen also includes two directions of vibration: longitudinal vibration and transverse vibration. Among them, longitudinal vibration causes the material to move up and down along the vertical direction of the screen surface, while transverse vibration causes the material to move along the horizontal direction of the screen surface. The alternating vibration forces in these two directions cause the material to sway back and forth on the screen, separating materials of different particle sizes.
In summary, the working principle of a vibrating screen is to use the vibration force to screen materials on the screen, separating materials of different particle sizes through different mesh sizes. Vibrating screens are widely used in industries such as mining, chemical engineering, building materials, and food.

Vibrating Sieve Shaker Series

Vibrating screen is a common screening equipment, whose main working principle is to use vibration force to screen materials on the screen, separating materials according to particle size.

Airflow Sieving Machine
The screen holder is placed inside the machine. Bulk materials mixed with airflow and atomization pass the screw conveyor device, enter the screen holder.
Direct Discharge Vibrating Screen
Direct discharge vibrating screen has two structure of single and double motors as its vibrating power source for option, which is mainly used for tough screening of particle powder. There are multiple adjusting ways for material running track, and applicability of the machine is significantly improved.

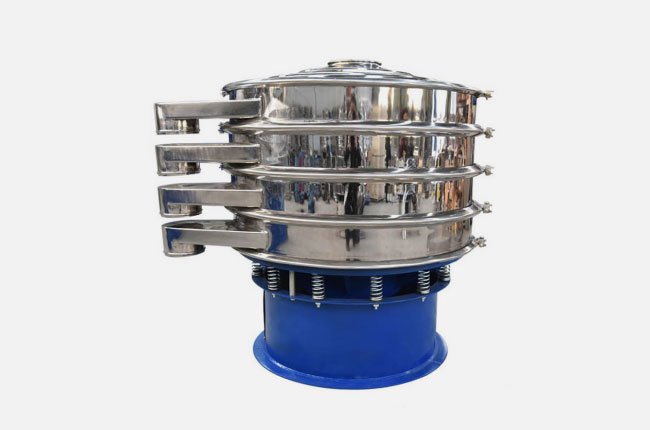

High Frequency Vibrating Filter
SY series of high frequency vibrating screen is designed for accurate grading or sieving of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgrading compared with traditional spring suspension separators.
Lab Test Sieve Shaker
Model No. BZS-300 Lab test sieve shaker is also known as standard inspection screen, test screen, standard analysis screen, standard screen, etc., which is a high-tech fine powder classification equipment developed on the basis of standard test screen.
Rotary Vibrating Screen
3D Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. 3D rotary vibrating  screen is a motor for vertical excitation source
Round Tumbler Screen
HXSY series of Round Tumbler Screen Machine is a low-frequency rotary vibrating screen which imitates manual sieving. The principle of this model: its instantaneous motion is combination of the radial displacement and the circular motion with the displacement as the axis (spiral motion).

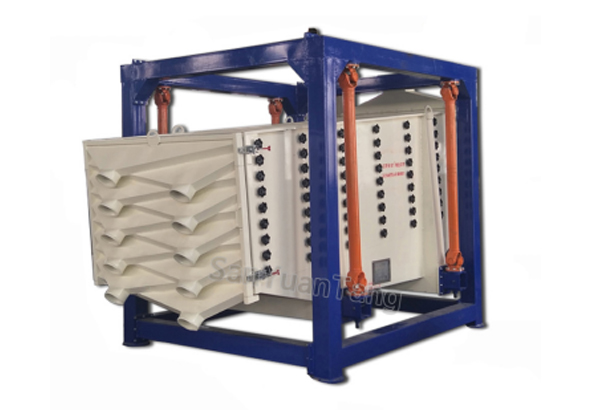

Square Swing Screen
FBS -1 Square swing screen is a high-efficiency screening equipment specially designed for high precision and large output powder. Gyratory motion of the exciter is transmitted to the screen surface through the square gyratory screen, so that material can be quickly dispersed in the front of the screen machine to achieve purpose of efficient screening.
SY-450 Vibrating Filter
Vibrating filter machine SY-450 type vibration filter is a new and efficient filtrate equipment, which can be widely used in filtering and screening work of pasty,powder.The minimum size of the material can be processed to 5 micron, and maximum number is 400 meshes.
Ultrasonic Vibrating Screen
The ultrasonic vibrating screen is to transform the electric energy of 220V/50Hz or 110V/60Hz into high-frequency electric energy of 18khz, input the ultrasonic transducer, and turn it into the mechanical vibration of 18khz, so as to achieve purpose of high-efficiency screening and mesh cleaning.
Typical Sample Materials
planetary ball mills are perfectly suitable for size reduction of, for example, alloys, bentonite, bones, carbon fibres, catalysts, cellulose, cement clinker, ceramics, charcoal, chemical products, clay minerals, coal, coke, compost, concrete, electronic scrap, fibres, glass, gypsum, hair, hydroxyapatite, iron ore, seeds, semi-precious stones, sewage sludge, slag, soils, tissue, tobacco, waste samples, wood, etc.
Company Strength
Vibrating screen is a common screening equipment, whose main working principle is to use vibration force to screen materials on the screen, separating materials according to particle size.
One-Stop Service
Discover our comprehensive range of powder processing equipment, including laboratory crushing,ball milling, screening, mixing, and more. We also offer scientific research equipment like glove boxes, providing a one-stop solution for all your powder processing needs.
Fast Delivery
We have a wide selection of regular models in stock for immediate purchase. Once you complete your payment, our dedicated team will swiftly pack and ship your order within 3-5 working days.
Can Be Customized
We can customize powder processing equipment to your exact specifications, ensuring your special needs are met with precision and perfection. Choose us for a superior experience, backed by our first- class equipment and a team of technical experts.
Strong R&D Strength
The company has more than 20 senior engineers, 8 external experts and professors, and more than 100 front-line skilled workers. TENCAN has a number of invention patent certificates, trademark registration certificates, ISO9001 quality management system certification, EU CE certification, etc.
Product Advantages
Vibrating screen is a common screening equipment, whose main working principle is to use vibration force to screen materials on the screen, separating materials according to particle size.
Application Fields & Industries of Vibrating Sieve Screen
Chemical industry: resin powder, pigment, laundry powder, micron powder, painting, soda ash, lemon powder.
Grinding & ceramic industry: alumina, Quartz sand, clay slurry and spray soil particles.
Food industry: Sugar, salt, alkali, monosodium glutamate, milk powder, soymilk, yeast, juice, soy sauce, vinegar.
Paper making industry: paste cloth coating, clay mud, black and white liquid, waste liquid, paper making wave, water recovery.
Metallurgical Industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder. Welding rod powder.
Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and Western medicine granule.
Environmental protection: garbage, human and animal raw urine, waste oil, food waste water, waste water processing.
